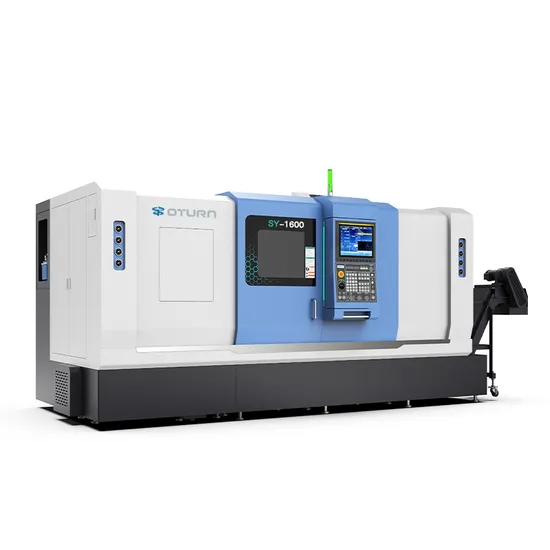

Oturncnc Heavy Duty Factory Sy1600 Slant Type Turning Machine CNC Slant Bed Lathe

Product Description

Product Description
The machine adopts an optimized 30-degree stepped flat rail structure design, and has high precision, super rigidity and excellent cutting
stability. High-strength HT300 cast iron one-piece strong structure bed, the application of finite element analysis, the overall mechanical rigidity and stability are excellent, and can maintain long-term reliable precision, improve processing stability and tool life, stress relief treatment improves precision stability, The high-strength roller rail design structure, the transmission system adopts the screw pre-tension design to improve the rigid performance, and the simple and elegant appearance conforms to the trend of the trend.
Main features of this machine tool:
1. The spindle unit is an independent sleeve type. The spindle system runs at 2500rpm, and the nose deflection accuracy is within 0.003MM. The front end of the shaft uses a large-diameter, high-precision double-row roller bearing with a combined angular contact ball bearing structure. The optimal span two-point balance support design can withstand radial and axial loads, and can also provide users with high-speed precision work. It can also perform low-speed and heavy cutting, and is especially suitable for mass production of products with complex shapes, high precision requirements, and high smoothness.
2. High rigidity overall design servo turret. Equipped with a high-precision clutch to ensure its positioning accuracy and repeatable positioning accuracy. It is equipped with a servo motor to drive the cutterhead to rotate for bi-directional or arbitrary tool selection. The hydraulic principle is used to loosen and clamp the clutch, and the proximity switch feedbacks the clutch action signal to quickly and accurately achieve the tool change action.
3. The machine tool is equipped with THK linear guides and ball screws. The heat-treated and precision-ground ball screws can ensure the best accuracy and durability. Each axis adopts a direct transfer axis structure and a double-anchor pre-relay method to prevent thermal changes. The bit quantity will be reduced to the minimum, greatly improving the processing accuracy. The high-rigidity, large-sized, heavy-duty linear slide rails maintain intact accuracy when the machine is subjected to impact, and the displacement is smooth and low-noise, which can extend the service life.
4. This machine provides users with a complete hydraulic and lubrication system, using high-quality hydraulic pumps, hydraulic valves and other components to greatly reduce the failure rate. The hydraulic and lubrication systems are designed to be simple and reliable. The machine tool adopts centralized quantitative automatic lubrication.
5. Programmable hydraulic tailstock and high rigidity structure of the integral tailstock can eliminate vibration and improve stability. It can be controlled by program or manual buttons, and the sleeve telescopicity is realized by hydraulic cylinder, which is convenient, fast and reliable. Product Parameters

	Name	Unit	SY1600
Travel	The largest diameter rotating bed	mm	Φ700
	Max. processing diameter	mm	Φ640
	Max.Swing Over Cross Slide	mm	Φ350
	Max. processing length	mm	1460
Spindle Hydro cylinder Chuck	Spindle nose	type	A2-11
	Maximum speed of spindle	rpm	2500
	Hydraulic Cylinder/Chuck	lnch	12″
	Spindle hole diameter	mm	Φ117
	Bar diameter	mm	Φ102
	Spindle motor power	kw	26
	Spindle motor power(1:2)	Nm	496-706
X/Z axis feed	X/Z axis travel	mm	330/1540
	X/Z axis guide specification	spes	45roll
	X/Z axis lead screw specifications	mm	4012
	X/Z axis motor power	kw	2.9
	Positioning accuracy	mm	±0.005
	Repeatability	mm	±0.003
	X/Z axis rapid movement speed	m/min	24/24
Servo Cutter	Tool position	pcs	12T
	Outside diameter tool holder specifications	mm	25X25
	Circular cutter holder specification	mm	Ф50
	The adjacent tool change time	sec	0.2
	Positioning accuracy	/	±2"
	Repeatability	/	±1"
Tailstock	Programmable hydraulic tail seat	/	Hydraulic tail seat
	Max. travel of the tailstock	mm	1300
	Morse Slide way	type	Mos5#
	Sleeve diameter	mm	Ф100
	Sleeve travel	mm	100
Mechanical Size	Machine size	mm	4300*2110*2100
	Machine Weight	kg	8200
Other	Cutting fluid tank volume	L	350
	Cooling water pump power	W	750
	Volume of hydraulic unit box	L	50
	Hydraulic oil pump motor power	kw	1.5
	Lubricating capacity	L	2
	Auto lube pump motor power	W	50
