Zf P4300 P5300 P7300 Transit Mixer Drives Zf Reducer Concrete Truck Mixer Planetary Reducer/ Bonfiglioli Concrete Truck Mixer Planetary Gearbox 564/567/577/580
| US$800.00-1,500.00 | 2 Pieces (MOQ) |
Basic Info.
Model NO.
HYT100
Layout
Coaxial
Hardness
Hardened Tooth Surface
Installation
Horizontal Type
Step
Three-Step
Type
Planetary Gear Box
Warranty
18 Months
Output Torque
Higher Output Torque
Custom
Customized Design
Brand
Elite/OEM
Ratio
Different Ratios
Brakes
Multiple Disc Brakes
Load Capacity
Higher Load Capacity
Delivery
Fast Delivery
Ground Tooth
Notchless Ground Tooth Root
Design
Robust and Modular Design
Assembly
Easy Assembly
Materials
Top-Quality Case Hardened and Tempered
Seals
Floating Oil Seal
Cost
Lower Cost
Bearing
Taper Roller Bearing
Transport Package
Wooden Boxes
Trademark
Elite
Origin
China
HS Code
8483402090
Production Capacity
1000/Month
Packaging & Delivery
Package Size
480.00cm * 480.00cm * 500.00cm
Package Gross Weight
190.000kg
Product Description

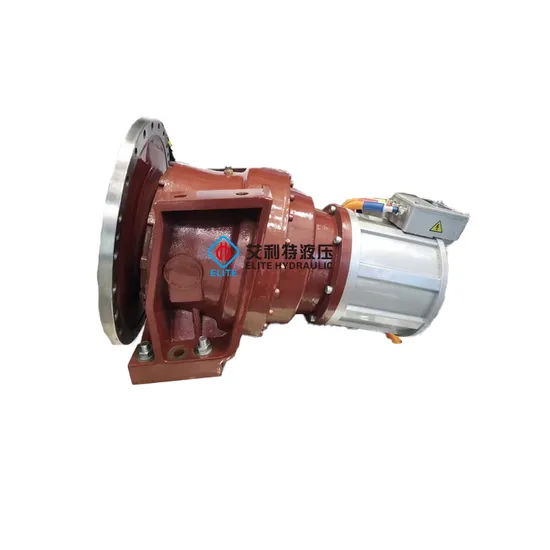

Product DescriptionAbsolute dependability, low maintenance, compactness and cost-effectiveness are the key features of the redesigned HYT series, the unparalleled line of drives for transit mixers. Ten models available for mixing capacity ranging from 1 to 20 m3. Detailed Photos
Features:
Compact structure and space-saving design
Robust main bearing system
High torque capacity
High load capacity
Integrated static multiple disk parking brake
Optional Disconnect device for towing
Optional Quick disconnection device
Simple mounting
Easy oil change
Low-noise running operation Product Parameters
| MODEL | MAX OUTPUT TORQUE | RANGE OF RATIO | MAX.INPUT SPEED | LOW SPEED. MOTOR | HIGH SPEED MOTOR | WATER PUMP PTO | DRUM CAPACITY | INTERCHANGEABLE MODEL |
| Nm | 1: | rpm | m³ | |||||
| HYT10 | 10000 | 9,26 | 600 | √ | 1-2 | Bonfiglioli 565 | ||
| HYT24 | 24000 | 29 | 800 | √ | 2-3 | Bonfiglioli 568 | ||
| HYT30 | 30000 | 101, 132 | 2500 | √ | 3-4 | Bonfiglioli 567 HS HSM4 | ||
| HYT36 | 36000 | 103 | 2500 | √ | 5-6 | |||
| HYT42 | 42000 | 103 | 2500 | √ | 6-7 | |||
| HYT50 | 50000 | 134 | 2500 | √ | 8 | Bonfiglioli 575 ZF P3301 HS HSM5 ZTS PM51 PMP PMB6 SAUER TMG51.2 | ||
| HYT54 | 54000 | 133 | 2500 | √ | 9-10 | ZF P4300 PMP PMB6.5 | ||
| HYT60 | 60000 | 135 | 2500 | √ | √ | 10-12 | ZF5300 HS HSM6 ZTS PM62 ZTS PMC 60 PMP PMB7.1 SAUER TMG61.2 | |
| HYT72 | 72000 | 123, 144 | 2500 | √ | √ | 12-14 | ZF7300 HS HSM7 ZTS PM72 ZTS PMC72 PMP PMB7.5 SAUER TMG71.2 | |
| HYT100 | 100000 | 141 | 2500 | √ | 16-20 | PMP PMB7.8 PMP PMB8 |
| Model | HYT100D |
| Max. output torque: | 100000 N.m |
| Input speed | up to 4,000 rpm |
| Ratio: | 141 |
| Applicable motors: | Cartridge axial piston hydraulic motors Flanged axial piston hydraulic motors Electrical motors |
| Application: | 16-20Cub concrete mixer truck |
In conclusion, ELITE Hydraulic offers quality, value, and professional power transmission solutions that cater to a wide variety of industries. With their expertise, experience, and commitment to customer satisfaction, you can be sure that you're in safe hands when working with them. Whether you need travel gearbox, electrical drive, travel drive,slew gearbox,winche gearbox,cutter gearbox,truck mixer gearbox,twin shaft mixer or other hydraulic transmission solutions, you can trust ELITE Hydraulic to provide you with the best possible solutions. Contact them today to learn more about their power transmission products and services.
