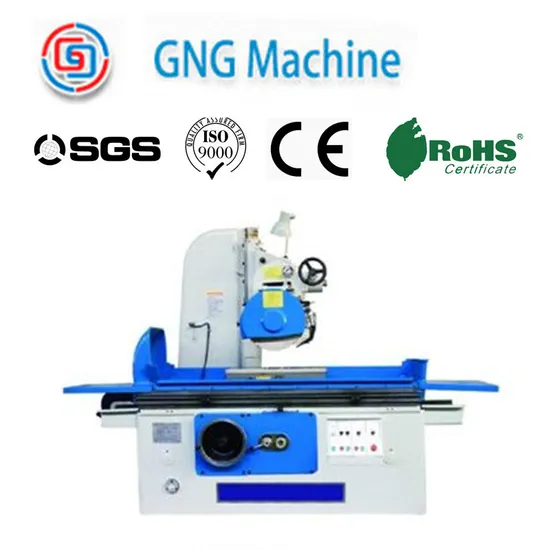

Electric Wheel Head Moving Surface Grinder
| US$10,631.25 | 1 Piece (MOQ) |
Basic Info.
Model NO.
M7130
Precision
Precision
Application
Metal Grding Machine
Type for Grinding Machine
Disc Grinding Machine
Grinding Machine Type
Vibration Polishing Machine
Grinding Method
Semi-Dry Grind
Condition
New
Table Size(Wxl)
300X1000 mm
Max. Machining Dimension(Wxl)
300X1000 mm
Max. Distance Between Spindle
575mm
Motor Power
5.5lw
Max. Loading Capacity of Worktable with
470kg
Transport Package
Plywood
Specification
CE
Trademark
customer brandv
Origin
China China
HS Code
8466200
Production Capacity
50sets/ Per Month
Product Description
Min. Order Quantity: 1 Set/Sets
Supply Ability: 500 Set/Sets per Month
Port: Qingdao
Payment Terms: T/T
Quick Details
Condition: New
Type: Surface
Grinding Machine
CNC or Not: Normal
Max. Grinding Diameter: 300
Max. Grinding Length: 1000
Place of Origin: Shandong, China (Mainland)
Brand Name: GNG
Model Number: M7130
Voltage: 220V
Power(W): 8630W
Dimension(L*W*H): 284X171X213cm
Weight: 3490kgs
Certification: CE
After-sales Service Provided: No overseas service provided
Packaging & Delivery
Packaging Details: Packed in playwood case
Delivery Detail: 30-45days
Specifications
T-slot number X W: 3X18
Table size: 300X1000mm
| M71 wheel head moving surface grinder | |||
| Item/Model | Unit | M7130 | |
| table size(WxL) | mm | 300x1000 | |
| max. machining dimension(WxL) | mm | 300x1000 | |
| max. distance between spindle center line and worktable surface | mm | 575 | |
| longitudinal moving speed of worktable | m/min | 5-25 | |
| T-slot number x W | mm | 3x18 | |
| wheel head cross moving | continuous feed speed | m/min | 0.5-4.5 |
| intermittent feed speed | mm/t | 3-30 | |
| hand wheel feed | mm/gra | ||
| wheel head vertical moving | rapid speed | mm/min | |
| feed of handwheel | mm/gra | 0.005 | |
| wheel head motor | power | kw | 5.5 |
| rotation speed | rpm | 1440 | |
| total power | kw | 8.63 | |
| max. loading capacity of worktable with chuck | kg | 470 | |
| chuck size (W x L) | mm | 300x680x1 | |
| wheel size (ODxWxID) | mm | 350x40x127 | |
| machine dimension(LxWxH) | cm | 286x154x203 | |
| package dimensions(LxWxH) | cm | 284x171x213 | |
| machine weight | t | 3.49 | |
