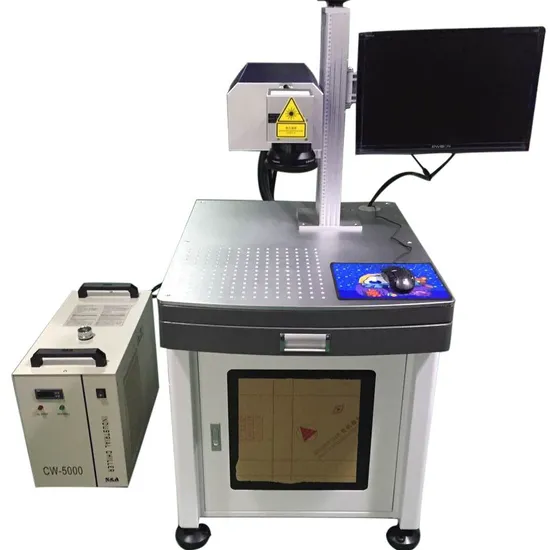

Ra Automatic UV 3W 5W 10W Laser Marking Machine for Engraving Plastic/Metal/PVC/Mobile

Product Description

Product Description
Haracters, graphics, numbers and letters, business name and trademarks, product specifications, frequency, serial number, security code, so as to replace the mechanical, printing type, chemical etching, ink jet printing and other traditional type of marking. 3-Axis Control,More accurately realized on the surface of the workpiece laser marking, no defocus phenomenon when machining, even complex surfaces can respond freely. Controlled by the three-dimensional dynamic laser marking self-developed hardware, software, configuration-specific three-dimensional galvanometer, perfect control of the laser beam in an arbitrary three-dimensional surface labeling.

Laser power	3W 5W 10W 15W 20W
Operating language	English, French, Spanish, German, Chinese, Russian, Arabic, etc. and corresponding input methods
Management rights	Multi-user rights management
Optoelectronic type	Support 15N for NPN or PNP signal input
Operating system	Embedded Linux system kernel, anti-virus
Coding mode	Static coding, analog speed coding, encoder speed coding
Reserved signal	Print start, print status, print completion, fault alarm
Coded fonts	Support SHX and TTF fonts and CSF fonts independently developed by our company
Variable type code	Serial code, time code, TXT file import, scan gun read code
Multi-port coding	Support 4 external trigger signals, each signal can spray different files separately
QR code types	QR codes, DA codes, and dozens of types of barcodes or QR codes
Code area and focal length (mm)	Lenses 110 x 110/fd160, 150 x 150/fd210, 175 x 175/fd254, 200 x 200/fd290, 220 x 220/fd330 Laser Galvanometer standard positioning red light focusing function
Operation	WYSIWYG 8 inch color touch screen, QWERTY or AZERTY virtual keyboard, navigation through icons and online help files 500 information storage capacity Quick plug laser head and power control box and accessories (photo eye, synchronizer, data line,etc.)
Marking line width	0.09mm
Minimum character	0.15mm
Marking speed	12000mm/s
Marking depth	0.01-2mm
Repeatability:	±0.002m
Making material	All metals and most non-metals
Marking content	Text graphics, automatic date, shift, serial number..
Cooling system	Built-in air cooling
Laser type	Pulsed or continuous
Scanning mode	High precision optical scanning galvanometer
Number of lines	Limited only by character height and printable area
Laser safety level	1P54 safety index: level IV
Mark spraying range	Standard 110mm, optional 150/175/200/300/400/600
Service environment	-20 °C-45 °C, relative humidity 80%;
Power supply	220V 50Hz AC, power consumption of the whole machine: 500W
Flight support size	524 x550x1455mm; Overall dimension of case: 450 x200x310 mm; Optical head: 510 x100x130mm

Detailed Photos


CE Certicfication:


Other Product


Packaging & Shipping

Our Advantages
As a manufacturing plant and a global enterprise, RA insists on quality, focus on service, continuous core technology innovation and research and development, and is committed to providing the best solutions for global customers.
Serialization and diversification of products to meet more needs of customers High-quality and durable products, creating maximum value for customers, timely after-sales service, professional and efficient problem-solving solutions, free test samples, free explanations to customers, and support for large-scale exhibitions.

Company Profile
Welcome to our company. We are an outstanding company in high technology and service industry. Since its establishment in 2005, we have been at the forefront of innovation and development in the Pearl River Delta, which is the prosperous center of industrialization and tourism. Recognized as the "world factory", we are proud to contribute to the international processing industry as an important member.
At our core, we specialize in the development, production and sales of intelligent machines, as well as a wide range of related products. We promise that we can design and manufacture various automated intelligent machines to meet the needs of the electronics and glasses industry.

The company's main products include robot loading and unloading, robot labeling, online automatic screw fastening machine, online automatic soldering machine, online automatic glue dispensing machine, automatic IC programming machine, automatic tape knitting machine, automatic screw locking machine, automatic welding machine, automatic glue dispensing machine, glasses automatic bending machine, glasses automatic screw fastening machine. The most advanced solutions such as automatic rivet machine, automatic laser marking machine for glasses, etc. Have realized simplified operation and improved productivity, completely changed the way our customers work:
1. Frequent changes in manual mobility lead to increased training and management costs.
2. Manual manufacturing, resulting in quality fluctuations, high failure rate, poor consistency, and difficult quality control.
3. Raw materials continue to rise, prices continue to be depressed, profit margins continue to decrease, competition is fierce, and homogenization is serious.
4. The off-season and peak season are obvious. When there are many orders, no one does it. When there are few orders, there is nothing to do. When I am free, I can't afford to support people. When I'm busy, I can't catch up with orders.
5. The amount of auxiliary materials is uncontrollable, the operation is wasteful, the production process is old, and it is time-consuming and laborious.
6. Major customers or foreign customers come to explore the factory. The factory has no advanced equipment and technology, and the customer trust is low.

If you are looking for professional, original and advanced automation equipment, you can contact us, and we will develop economical and practical products and services with reliable quality and stable performance for you. We adhere to the spirit of integrity, integrity, innovation, quality, win trust and brand achievements, pursue sustainable management in the future, and constantly transform advanced technology and experience at home and abroad into competitive products to meet the needs of customers. The success comes from the automatic burning machine, automatic soldering machine, and so on. Save manpower to improve production efficiency, good applicability, timely service and other advantages, so that customers can quickly spread to various industries. Most of the customers are leading manufacturers in domestic and foreign industries. The introduction of Rong'an mechanical and electrical equipment promotes the transformation of customers from labor-intensive to equipment automation and factory automation, and solves many industries in production and manufacturing. The bottleneck encountered in the process has achieved the customer's own automation equipment.
But our dedication is not limited to providing excellent products. We are proud of our excellent customer service and strive to establish a strong and lasting cooperative relationship with every distinguished partner. Our knowledge- and experienced team is ready to provide comprehensive support to ensure that our customers get the greatest satisfaction and maximum value from our solutions.
FAQ
Q: Why choose us?
A:We are factory and provide overall solutions for processing equipment.Our standard equipment is very complete,all are in stock and can be shipped quickly.We have our own equipment factory,which can fully customize equipment according to customer requirements,such as ordering different machine size & appearance and brand for agents
Q:This is the first time I use this kind of machine, is it easy to operate?
A:Don't worry, we guide installation and train operators for you as free of charge,also our engineer will setup machine & create programming well according to your product sample, you only need to press button "start" to let it work, furthermore,we prepared full English manual & operating videos for you to study step by step.
Q:How can we guarantee quality?
A:We implement strict incoming materials inspection and 100% tests before shipment.
Q:In case the machine can't work well, what should I do?
A:After the machine delivered,pls inspect the machine within one week, if there is any problem in use of machine itself and can not be fixed,we promise a refund,furthermore we provide 2 years warranty and lifetime technical support,our technical feedback within10 hours after receiving notice from you.
Q:What can you buy from us?
A:Screw fastening/locking machine,Soldering/welding machine,Glue dispensing/dispenser machine,IC programming machine,SMT online laser marking machine, Automatic chip tape machine,PCB board lead pin Cutting Machine etc.
