Plastic Injection Independent Sealing Ring Mould
| Negotiable | 1 Piece (MOQ) |
Basic Info.
Model NO.
YS20170218333
Mould Cavity
Multi Cavity
Plastic Material
PE
Process Combination Type
Single-Process Mode
Application
Household Appliances, Commodity, Home Use
Runner
Hot Runner
Design Software
UG
Installation
Fixed
Standard
HASCO
Customized
Customized
Size
28mm/ 30mm/ 32mm/ 38mm
Cavity
2/4/6/8/10/12/16/18/20/24/32/36
Mould Matieral
P20\S136\2316\#45\718
Polish
High Polish
Warranty
3, 000, 000 Times
Process
Computer
Product Matieral
PP, PC, Pet
Transport Package
Wooden Package
Trademark
Yongsheng
Origin
China
HS Code
8480719090
Production Capacity
500sets/Year
Product Description
1.ADVANTAGE:1.Saving 10%-30% cost than others.
2. Direct factory price
3. Life:3, 000, 000 time
4.2D and 3D provided
5. Quick T1 time: 25-40 days
6.More than 15 years experience

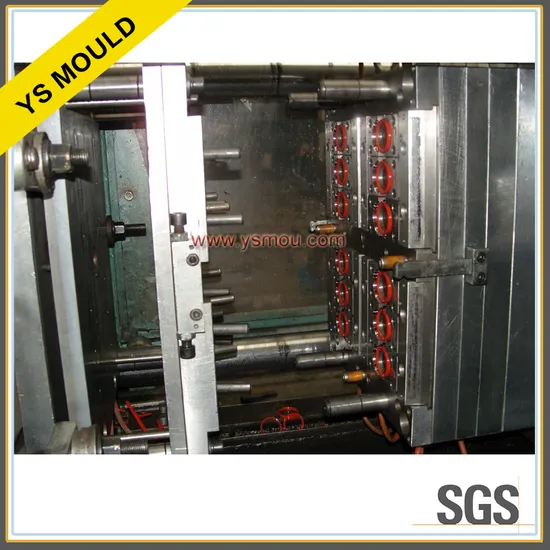

2.PICTURE:
3.MOULD DESCRIPTION:
1.Cavity:1-72
2.Mould base material :P20 , 45# , 4CR13 , .ECT
3.Core&Cavity material : S136,718, P20,2378,2316,4CR13,P20 .ECT
4.Runner: Cold /Hot (LOCAL BRAND,HASCO,YUDO,HUSKY .ETC)
5.Life time:3,000,000 shots
6.Quick T1 time:25-40 days
7.Package:wooden case
4.MOULD MANUFACTURE PROCESS:
Cap Mould : grinding→fly-cutter →CNC Milling→drilling→lathe→boring lathe→electric pulse →fine fly-cutter→polish→electroplate→install
Preform Mould: grinding→drilling→lathe→boring lathe→fine fly-cutter→polish→electroplate→install
Need vale ,itself-locking :new advanced needle vale gate system.each cavity is self-lock independently to ensure low decent ration of product.
The excellent hot runner design assures uniform heating and greatlyimproves the quality of plastic products
5.AFTER SALE SERVICE:
Any mould problem,we will provide free maintenance service
6. FLOW CHART
| 1 | Sample or 2D,3D drawing from customer |
| 2 | Bulid 2D,3D drawing |
| 3 | CAD mould design |
| 4 | Send drawing to customer to confirm |
| 5 | Parts inspection/CNC machining/EDN machining |
| 6 | Mould assembly |
| 7 | Mould test |
| 8 | Send sample to confiom |
| 9 | Dilver the mould |
