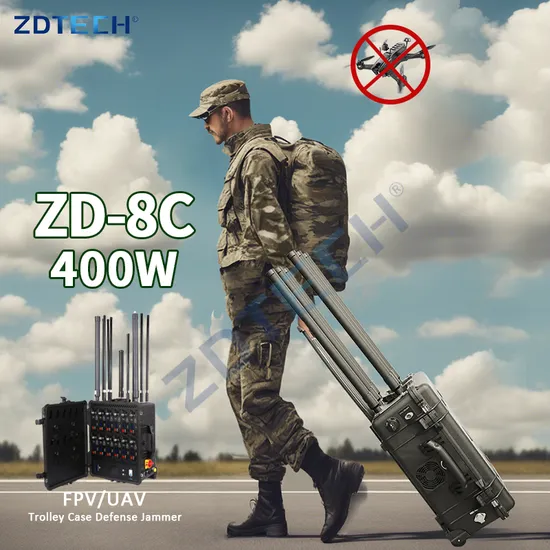

Customized 8 Bands 400W Portable Security High Power Anti Drone System Bomb Trolley Jammer
| Negotiable | 1 Piece (MOQ) |
Basic Info.
Model NO.
ZD-TSJ-8B
Application
Uav Jammer
Frequency Band
433/900/1.2/1.3/1.5/2.4/5.2/5.8
Working Voltage
DC24-28V
Running Temperature
-20ºC to +70ºC
Power Output
450W
Jamming Range
1- 25m
Dimension
620*500*350mm
Weight
45kg
Temperature
-20ºC-+50ºC
Relative Humility
≤90 %
Transport Package
by Box
Specification
49*26*11cm
Trademark
ZD TECH
Origin
China
HS Code
8543209090
Production Capacity
2000pieces/Month
Product Description
Applications: This high-power portable trolley box type frequency jammer can be used in various application sites such as UAV no-fly-zones, luxury houses, scenic spots, oil stations (depots),power systems, security of important leaders/VIP guests, individual operations, SWAT teams, explosive-disposal teams,anti-terrorism units, anti drug units, explosion-proof teams, security inspection stations, administrative law enforcement, hostage negotiatons, border control, security forces and other application sites like that.
Specification:
| Frequency band parameters | channel | frequency | application | power | current |
| CH1 | 20-350MHz | Toy remote control device micro power radio | 50W | 4A | |
| CH2 | 350-500MHz | walkie-talkie Wireless remote control | 50W | 4A | |
| CH3 | LTE800MHz | 4G-LTE | 50W | 4.5A | |
| CH4 | GSM900MHz | 2G-GSM | 50W | 4.5A | |
| CH5 | GSM1800MHz | 2G-GSM | 50W | 5A | |
| CH6 | GSM3Gband | 3G-GSM | 50W | 5A | |
| CH7 | 1500-1600MHz | GNSS,Navigation | 50W | 4.5A | |
| CH8 | 2400-2500MHz | WIFI,Bluetooth,UAV | 50W | 6A | |
| Host size | |||||
| 620*500*350(Excluding protrusions) | |||||
| Antenna size | 760mm length,35mm diameter | ||||
| Antenna type | High gain omnidirectional antenna (8 pieces) | ||||
| Power suppl mode | AC:110V~240V DC:24V | ||||
| weigh | <45Kg | ||||
| Temperature/humidity | -20ºC-+50ºC/≤80% | ||||
| Machine dliabiiity | MTBF Not less than 1000 hours | ||||
| System response time | Not more than 30 seconds (from power on to normal working time of the system) | ||||
| Box design | American Pelican instrument standard case,shockproof and compression resistant structure design,and the case has its own pull rod,which is convenient to move and carry | ||||
| Available system | Include analog (AMPS,TACS,NMT) and digital (GPRS,GSM, DCS,CDMA,PDC,4G,PHS,PCS,IDEN,W-CDMA,UMTS) ,3G,5.8G |
| Power input | AC160V-240V |
| Jamming range | Radius 1- 25M |
| Safety regulation | AC Adapter UL (E190582) |
| Dimension | 620*500*350mm |
| Weight | 45kg |
| Temperature | -20ºC-+50ºC/≤80% |
| Relative humility | ≤90 %( RH) |
| Working Area:1. Conference room, auditoriums, law court, library, exam room, school, cinema, theater, and hospital etc. 2. At places where using mobile phones is prohibited such as government, finance, securityand command center etc. | |
