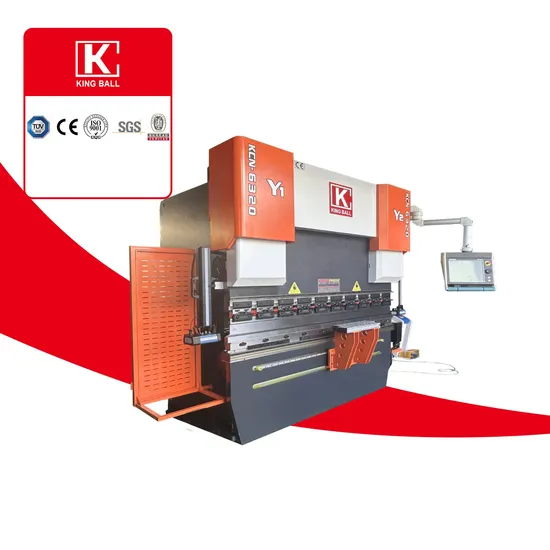

Synchronous CNC Sheet Bending Press Brake

Product Description

Screen	10.1" TFT Colour LCD display	15" TFT Colour LCD display	17" TFT Colour LCD display	17" TFT Colour LCD display
Resoluntion	1024 x 600 pixels, 32 bit colour	1024 x 768 pixels, 32 bit colour	1280 x 1024 pixels, 16 bit colour	1280 x 1024 pixels, 32 bit colour
Maximum axes	Up to 4 +1 axes ()	Up to 4 +1 axes	Up to 8 +1 axes	Up to 8 +1 axes
Program method	numerical + 2D graphical (optional)	numerical + 2D graphical	numerical + 2D modular	numerical + 3D modular
Touch sensor	Full touch screen control (PCT-touch)	Full touch screen control (PCT-touch)	Full touch screen control (IR-touch)	Full touch screen control (IR-touch)
Storage capacity	1 GB	1 GB	1 GB	2 GB
Product and tools memory	256MB	256MB	256MB	256MB
Networking	/	Optional	Standard Windows® networking	Standard Windows® networking
Bend sequence calculation	/	Standrad	Standrad	Standrad
Offline software	Profile-53TL	Profile-58TL	Profile-TL	Profile-T3D
Tandem capability	Optional	Optional	Optional	Optional
Language	BR, CN, CZ, DK, NL EN , FI, FR,DE, GR, HU, IT JP , KR,LT, PL,PT, RO, RU, SI, ES, SE, TR	BR, CN, CZ, DK, NL EN, FI, FR,DE, GR, HU , IT JP, KR, LT, PL,PT, RO, RU, SI, ES, SE, TR	BR, CN, CZ, DK, NL EN, FI, FR,DE, GR, HU, IT JP, KR, LT, PL,PT, RO, RU, SI, ES, SE, TR	BR, CN, CZ, DK, NL EN, FI, FR,DE, GR, HU, IT JP, KR, LT, PL,PT, RO, RU, SI, ES, SE, TR

Parameters of pure electric press brake

Full Servo CNC Press Brake			3012	4016	6020	8025	10032
Capacity		kN	300	400	600	800	1000
Max. Bending Length		mm	1250	1600	2000	2500	3200
Between Columns		mm	800	1200	1600	2100	2600
Max. Shut Height		mm	480	480	480	480	480
Slide Stroke		mm	200	200	200	200	200
Throat Depth		mm	250	250	350	350	400
Down Speed		mm/min	200	200	200	200	200
Pressing Speed		mm/min	0-30	0-30	0-30	0-30	0-30
Return Speed		mm/min	200	200	200	200	200
Main Motor Power		kW	18	7.5*2	18*2	28*2	41*2
X axis stroke		mm	500	500	500	500	500
X axis speed		mm/s	300	300	300	300	300
R axis stroke		mm	200	200	200	200	200
R axis speed		mm/s	60	60	60	60	60
Outline Size	L	mm	1700	2500	2500	3000	4500
	W	mm	1450	1750	1750	1750	1920
	H	mm	2400	2500	2600	2600	2700
Weight		kg	3000	4500	5500	7200	10500

Main Ball Screw In comparison to the mainstream electro-hydraulic servo press brake, our advanced design ensures that motor power consumption is directly dependent on the load, resulting in significant energy savings and enhanced economic benefits. Main Motor
The servo motor, connected via a synchronous toothed belt to the ball screw, facilitates the precise up and down movement of the machine beam. This meticulous control by the servo system guarantees higher speed and precision in your work.
Our ServicePre-sales Services:1. Inquiry and consulting support
2. Sample testing support
3. Visit our factory
After-sales Services:1. A two-year warranty period
2. Training on installation and usage of the brake press machine
3. Engineers available for overseas machinery servicingContact Ways Ms. Linda ZhangCustomer Manager
