Q235 Galvanized Steel Coil with Small Spangles

Product Description

Q235 Galvanized Steel Coil with Small Spangles
Product Description Δ Galvanized Steel Coil Specificates

Product Name	Q235 Galvanized Steel Coil with Small Spangles
Material	SGCC(50~75HRB/G350), SGCH(85~95HRB/G550),ASTM A653M, EN10147, DIN 17162, JIS G3302, etc.
Normal Thickness	0.145m~3.0mm
Normal Width	660mm, 762mm, 914mm, 1000mm, 1200mm, 1220mm, 1250mm
Coil Weight	3-8 tons
Coil ID	508mm,610mm
Spangle Pattern	Regular spangle,Larger spangle, Mini Spangle,No spangle.
Mass of Coating	40g/m2~275g/m2

Basic Plate Type	Item		Nominal Size(mm)
Cold Rolled Galvanized Steel Strip	Thickness		0.20-2.00
	Width	Strip	200-1500
		Longinal Cutting Strip	50-900
	Length	Steel Sheet	1000-6000
		Strip	(ID for coil)508/610
Hot Rolled Galvanized Steel Strip	Thickness		0.5-6
	Width	Strip	900-1500
		Longinal Cutting Strip	19-900
	Length	Steel Sheet	1000-6000
		Strip	(ID for coil)508/610

Product Parameters Galvanized Steel Coil Chemical Composition

Chemical Composition	C	Si	Mn	P	S
	≤ 0.10	≤ 0.50	≤ 0.60	≤ 0.10	≤ 0.30
Mechanical Property	Yield Strength Mpa		Tensile Strength MPa		Elogation %
	≥ 205		≥ 270

Galvanized Steel Coil Sizes

Thickness (mm)	Width (mm)	Mass of Coating (g/m2)	Thickness (mm)	Width (mm)	Mass of Coating (g/m2)
0.25	1000/1250	40~275	0.95	1000/1250	40~275
0.30	1000/1250	40~275	0.98	1000/1250	40~275
0.35	1000/1250	40~275	1.00	1000/1250	40~275
0.36	1000/1250	40~275	1.10	1000/1250	40~275
0.40	1000/1250	40~275	1.15	1000/1250	40~275
0.42	1000/1250	40~275	1.20	1000/1250	40~275
0.45	1000/1250	40~275	1.35	1000/1250	40~275
0.47	1000/1250	40~275	1.40	1000/1250	40~275
0.50	1000/1250	40~275	1.50	1000/1250	40~275
0.55	1000/1250	40~275	1.55	1000/1250	40~275
0.58	1000/1250	40~275	1.60	1000/1250	40~275
0.60	1000/1250	40~275	1.75	1000/1250	40~275
0.65	1000/1250	40~275	1.8	1000/1250	40~275
0.70	1000/1250	40~275	1.85	1000/1250	40~275
0.75	1000/1250	40~275	1.90	1000/1250	40~275
0.80	1000/1250	40~275	1.95	1000/1250	40~275
0.85	1000/1250	40~275	1.98	1000/1250	40~275
0.90	1000/1250	40~275	2.00	1000/1250	40~275
			2.50	1000/1250	40~275

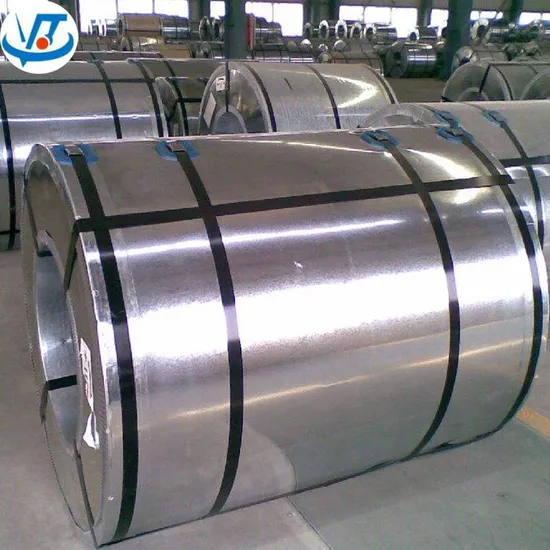

Detailed Photos Δ Galvanized Steel Coil Stocks
Δ Galvanized Steel Strip Stocks
Application Δ Galvanized Steel Coil Applications
Hot products
Our Hot Products

Commodity	HS Code
Prepainted galvanized steel coil	7210701000
Galvanized steel coil	7210490000
Galvalume steel coil	7210610000
Prepainted galvanized corrugated steel sheet	7210701000
Galvanized corrugated steel sheet	7210410000
Cold rolled steel coil	7209179000

Packaging & Shipping Δ Galvanized Steel Coil Packing & Shipping
Packing Details: Export standard package, or as customer's request. The inner size of container is below: 20ft GP: 5.8m(length) x 2.13m(width) x 2.18m(high) 40ft GP: 11.8m(length) x 2.13m(width) x 2.18m(high) 40ft HG: 11.8m(length) x 2.13m(width) x 2.72m(high) Delivery Details : 10-15 days or according to the order quantity or upon negotiation.
