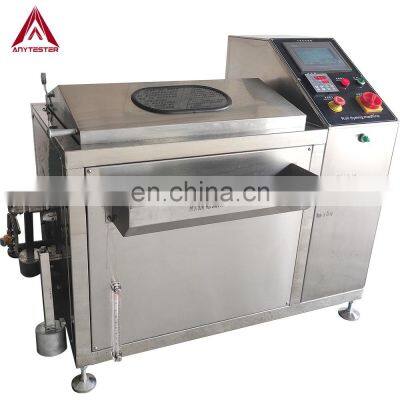

Laboratory Fabric Jig Dyeing Machine

Product Description

Product Description
Product Description
AT276 Laboratory Jig Dyeing Machine is special designed for lab normal temperature jig dyeing. It's applicable to retreatment, bleaching and dyeing of cotton, flax, chemical fiber blending and nylon interweaving. This jig dyeing machine is an ideal solution to cut down the waste of time and invest due to bad dyeing technology. It's also helping you to develop new dyeing formula.
Specification

Model	AT276
Operation mode	Touch screen operation
Heating Method	electric heating (steam heating optional)
Rolling diameter	Φ57~200mm
Rolling width	≤450mm
Speed range	0~10m/min±0.01m/min, settable
Temperature range	R.T ~ 98℃±2℃
Temperature accuracy	±2℃
Heating Power	<3kw
Liquid dosage	Approx. 1.8L
Machine power	Approx. 3kw
Power supply	3 Phase 220/380V, 50Hz
Dimensions	910×720×1150mm
Weight	Approx. 180kg

Futures
The main body adopts stainless steel material, nice appearance, easy to operate.
★Controller: industrial automation components, integrated optimization of process performance, integrated automatic control system with excellent high reliability.
★ Operation panel: nice, convenient, simple and intuitional.
★Constant cloth speed guarantee: adopts the two-roller mechanical constant-speed technology to basically guarantee the consistent speed of the cloth.
★Temperature control: digital display automatic temperature control system, accurately measure and control the temperature of dye liquid in the dyeing tank.
★Tension control: adopts two separate synchronous rollers control system, manual preset mechanical synchronization, ensures the system keeping a constant tension.
★ Motor: 2 sets of 180w precision control gear motor and 400w frequency converter control systems.
★ Dyeing tank: imported SUS304 stainless steel, more durable; trapezoidal structure, small liquid dosage.
★ Dye liquid circulation mode: automatic stirring, keep the dye liquid more even.
★ Winding cycles: automatically record, can be preset and measured & controlled.
★ Direction of rotation: automatically rotate backward and forward according to the cloth length and number of cycles.
Packing & Delivery

Packaging
Size	910*720*1150mm
Weight	Approx. 180kg
Packaging Details	The normal package is wooden box(Size: L*W*H). If export to european countries,the wooden box will be fumigated.If container is too tigher,we will use pe film for packing or pack it according to customers special request.

Payment

Payment Item	T/T	EXW 30% T/T in advance, paid the balance before shipment FOB CFR(C&F) 30% T/T in advance,paid the balance against copy of B/L CIF	30% T/T in advance, paid the balance before shipment
		FOB
		CFR(C&F)	30% T/T in advance,paid the balance against copy of B/L
		CIF
	L/C	L/C amount above 50,000 usd, we can accept L/C at sight
	West Union	Amount lower than 50,000usd
Delivery Time	7~10 days after receiving payment for one container
