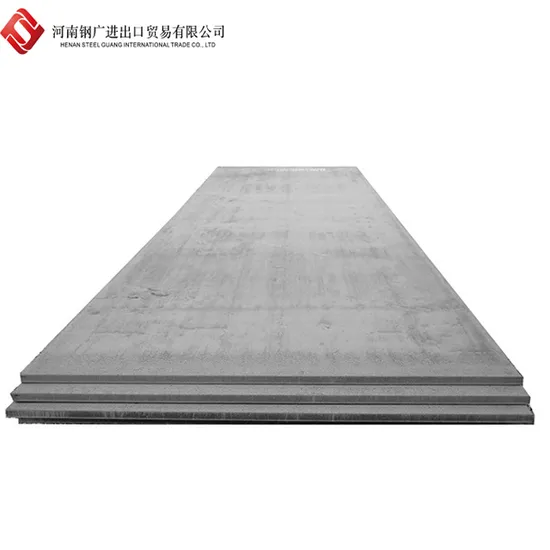

Hot Rolled Wnm400 Wearing Steel Plate Wnm450 Wear Plate Wnm500 Wear Resistant Steel Plate Nm400 Nm450 Nm500 Steel Plate for Sale

Product Description

Hot rolled Wnm400 wearing steel plate Wnm450 wear plate Wnm500 Wear Resistant Steel Plate nm400 nm450 nm500 steel plate for sale
We can provide and customize the service, can cut any size, if you have any requirements, you can contact me at any time!

Grade	Suitable working condition	Suitable performance	Example of application
NM360	wear resistant condition with hight toughness requirement	high crack resistant;good welding performace	blade plates,crushers and tear tools,etc
NM400	wear resistant condition	good cold bending;good welding performance	crushers,chutes,hoppers,crane booms,cutting edges,conveyor troughs,buckets,gear,sprockets,truck dump bodies,shovels,industrial trucks,railway wagon,bulldozers,excavators,concrete mixer drums,skrew conveyor,etc
NM450	wear resistant condition	good cold bending;good welding performance	truck dump bodies,container,crushers,screens,chutes,hoppers,mobile man-lifts,cutting edges,Transport trailers,buckets,gears,sprockets,etc.
NM500	wear resistant condition	---	crushers,screens,chutes,hoppers,crane booms,cutting edges,conveyor,huckets,gears,sprockets,etc

Product Description 1. High wear resistance: the wear resistance is more than 15-20 times that of ordinary steel plates, 5-10 times that of low-alloy steel plates, and 2-5 times that of high-chromium cast iron.
2. Better impact performance: the wear-resistant layer resists the wear of the wear medium, and the substrate bears the load of the medium
3. Better heat resistance: The alloy wear-resistant layer is recommended to be used under ≤600ºC. If vanadium, molybdenum and other alloys are added to the alloy wear-resistant layer, it can withstand high temperature wear of ≤800ºC.
4. Good corrosion resistance: The alloy layer of the wear-resistant composite steel plate contains a high percentage of metallic chromium, so it has certain rust and corrosion resistance.
5. Good processing performance: wear-resistant steel plate can be cut, bent or crimped, welded and punched, and can be processed into various parts.

Specification
Steel Grade	NM360, NM400, NM450, NM500, NM550, NM600,AR400,AR500,AR600 etc.
Standard	GB, ASTM, JIS ,DIN, ASTM
Thickness	6mm-150mm
Width	1000-4000mm
Length	1000mm-12000mm or according to customer's special request
Tolerance	Thickness: +/-0.02mm, Width:+/-2mm
MOQ	1 Ton
Application	1.Automobile, Bridges, Buildings. 2.Machinery, Pressure vessel industries. 3.Ship building, Engineering construction. 4.Mechanical manufacturing, Pavement slab, ect.
Package	Bundle with steel strip,Container shipping
Capacity	50000 tons /year
Mill MTC	can be supplied before shipment
Inspection	The Third Party inspection can be accepted,SGS,BV

Product Parameters

chemical composition
Grade	C	Si	Mn	P	S	Cr	Ni	Mo	T
	≤
NM300	0.23	0.70	1.60	0.025	0.015	0.70	0.50	0.40	0.050
NM360	0.25	0.70	1.60	0.025	0.015	0.80	0.50	0.50	0.050
NM400	0.30	0.70	1.60	0.025	0.010	1.0	0.70	0.50	0.050
NM450	0.35	0.70	1.70	0.025	0.010	1.1	0.80	0.55	0.050
NM500	0.38	0.70	1.70	0.020	0.010	1.2	1.00	0.65	0.050

Mechanical property
Grade	Thickness(mm)	tensile strength(MPa)	Elongation A(%)	Surface Brinell hardness(HBW)
NM300	≤80	≥1000	≥14	270-330
NM360	≤80	≥1100	≥12	330-390
NM400	≤80	≥1200	≥10	370-430
NM450	≤80	≥1250	≥7	420-480
NM500	≤70	-	-	≥470

CHINA GRADE	CHINA STANDARD	EQUAL GRDAE
		JFE	SSAB
NM300	GB/T 24186-2009	EH300	HARDOX300
NM360	GB/T 24186-2009	EH360	HARDOX360
NM400	GB/T 24186-2009	EH400	HARDOX400
NM450	GB/T 24186-2009	EH450	HARDOX450
NM500	GB/T 24186-2009	EH500	HARDOX500
NM550	GB/T 24186-2009	EH500	HARDOX550
NM600	GB/T 24186-2009	EH500	HARDOX600

Detailed Photos
Packaging & Shipping
Application Wear resistant steel plate has high wear resistance and good impact resistance, capable of cutting, bending, welding, can take welding plug welding, bolt connection and other structures are connected with time in the maintenance process, convenient, widely used in metallurgy, coal, cement, electric power. Glass, mining, building materials, tiles and other industries, compared with other materials, has a very high price, has attracted more and more industries and manufacturers of all ages.
Product Process
Our Services 1.Professional Factory
We have our own factory with more than 10years production history in hoist equipment manufacturer.
2.High Quality
All of our products have been checked seriously:
With Chemical Composition and Mechanical Properties Analysis; Hydrostatic Test, Dimensional
and Visual Inspection, Also With Nondestructive Inspection
3.Good Prices
Competitive prices based on the same quality as we are factory supplier.
4.Fast Delivery
professional packing, avoid damage.
5.OEM Custom
Samples can be made according to your requirements before placing order.
6.Best Service
Your kind inquiry will be replied in 8 hours or 24 hours if time difference.
7.Help to Solve Problem
Specialized team make us strong support to solve your problems from purchase to application.

FAQ 1. Q: Are you a manufacturer?
A:Yes, we are manufacturers. We have our own factory and our own company. I believe we will be the most suitable supplier for you.
2. Could we visit your factory?
A: Sure, we welcome you to visit our factory , check our production lines and know more about our strength and quality.
3. Q: Do you have quality control system?
A: Yes, we have ISO, BV, SGS certifications and our own quality control laboratory.
4. Q: Can you arrange the shipment for us?
A: Yes, we have designated sea freight and railway freight forwarders with decades of experiences and we get the best price with earlist vessel and professional service.
5. Q: How long is your delivery time?
A: Generally it is 7days if we have the exact goods in our stock. If not, it will take around 15-20 days to get goods ready for delivery.
6. Q: Can I get some samples?
A: We are glad to provide free samples to you, but we do not offer the freight.
7. Q: What is your after-sale service?
A: We provide after-sale service and offer 100% guarantee on our products.
8. Q: What is your MOQ?
A: 25 Tons
