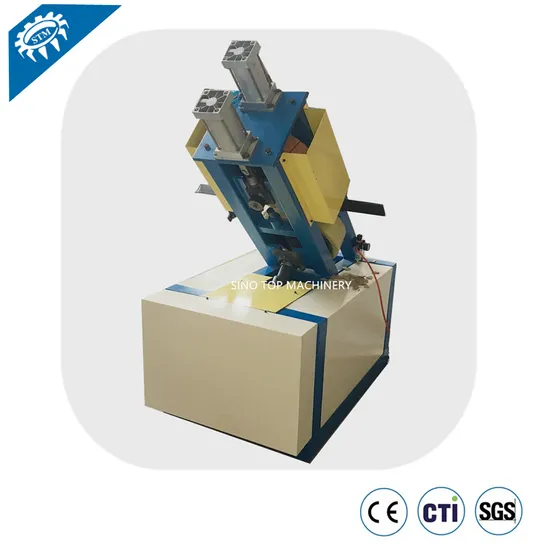

Steel Coil Edge Protection Machine

Product Description

We engaged in HONEYCOMB LAMINATING CORE AND CARDBOARD MACHINE, EDGEBOARD MACHINE, SLIP SHEET MACHINE, DUNNAGE BAG MACHINE, FLAT BOARD MACHINE, SLITTING MACHINE, etc, OEM is avaliable and welcome.
Production Name
Automatic edgeboard making machine with cutting and punching funcation
Packge & Delivery
1. Wooden case or transparent strength film and corner board to protect
2. Delivery time: 30-70days
Production Line
wrapping around edgeboard machine
Steel packaing wrapping around corner board machine
round edgeboard machine
ZHJ120AP for V and U shape corner baord
ZHJ120AS for cutting and punching funcation 2-in-1 machine
Techinic Parameter
1. For both equal side and unequal sides
2. Speec: 0-50m/min
3. Cutting percision: + 1mm/min
4. Max layer of paper: 13 layer
5. Thinckness of edgeboard: 1.5-10mm
6. Total power: 25kw
7. Paper demands: Surface paper ≥ 160g, inner paper: ≥ 300g
8. Cutting way: Servo motor control
9. Gluing way: Single side or double sides
10. Adjustment of roller: Right and left, up and down
Advantage of EDGEBOARD MACHINE
1. Fine treatment of all parts
2. Automatic paper holder with manual work
3. Cutting accuracy reach 1mm/m byPLC and Servo motor control
4. Warnning alarm to remind the breakdown part to promise safty operation
5. Counting funcation for production amount for one time and whole day
6. Self control of guling pump
7.2-in-1 gluing system
8.8 sets of pressing roller with high speed
9. Mute operationa and production with automatic staking of corner board and delivery
Usage and Funcation
Brief Intruduction of US
Factoy locates in WUXI, CHINA, it is a new factory comes from ZHONGJIANTE enterprise, one is in wuxi for production base and one office in suzhou for sales center who' s quite near shanghai port. It is full of exporting experience paper packaging machine to JAPAN, DUBAI, FINLAN, BRAZIL.
Best quality and best service to be NO. 1 and make the top one in the world.
Warranty
One year wanrranty, and whole life after sale service. 24 hours servie.
Main Products
Honeycomb machine, edgeboard machine, slitting machine, slip sheet machine, automatic dunnage bag machine, flat baord machine, gluing machine, corrugated machine, ect
Relevants products
Honeycomb core, honeycomb cardboard, corner board, edgeboard protector, angle board, slip sheet, anti-slip sheet, flat board, dunnage bag, air bag.

Model	ZHGQ-120
Width of edge board	25-120mm (both equal and unequal angle)
Production speed	0-80m/min
Thickness	1mm-5mm
Saw-tooth per meter	8-32
Power	3KW
Weight	850kg
Overall Size	1300mm*1000mm*1600mm
FUNCATION AND FEATURES For both inner and outer wrap round edge board with different saw-tooth Different distance of saw-tooth Pneumatic Roller for free depth of saw-tooth, pneumatic up and down to promise even pressure This machine is mainly to cooperate with edge board production line Simple operation with most effective production to take place of manual job. The wrap around edge board mainly for protecting of round good, like steel roller
