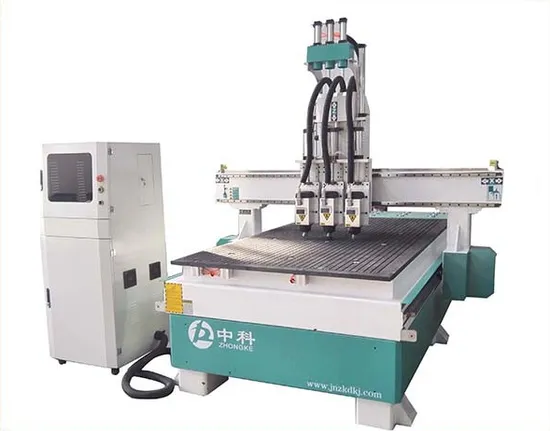

Pneumatic Three Heads Atc Model Wood CNC Router Machine/Cabinet Door Making Machine/Wood Engraving Machine
Basic Info.
Model NO.
1325
Spindle Number
Three Heads
Feed Mode
Manual
Controlling Mode
CNC
Certification
CE, ISO
Customized
Customized
Condition
New
Color
Customized
Bed
New Type Welded Bed Structure
Inverter
Sunfar Inverter
Rail
Hiwin Square Guide Rail
Transmission
Helical Rack
Spindle
Air Cooling Spindle
Working Mode
Easy Servo Motor and Driver(Op:Servo)
Lubricating
Handle Press Oiling System(Op:Auto)
Control System
Ncstudio Control System
Table
Vacuum Adsorption Table
Bed Structure
Welded Steel Bed Structure
Transport Package
Exporting Plywood Package
Specification
1325
Trademark
ZK
Origin
Shandong China
HS Code
84659900
Production Capacity
100set /Month
Product Description
Pneumatic Three Heads Atc Model Wood CNC Router Machine/Cabinet Door Making Machine/Wood Engraving MachineSpecifications:
| Model | ZK1325 |
| X,Y,Z axis working area | 1300*2500*200mm |
| Whole structure | Welded Steel gantry structure |
| Table surface | vacuum table with 5.5KW vacuum pump |
| X,Y,Z structure | Taiwan PMI/HIWIN Square linear guide rail |
| X,Y structure | Rack and pinion transmission, high speed and more stable; Y -double motor drive |
| Z structure | Imported ball screw, high precision |
| Max. idling speed | 50m/min |
| Max. working speed | 25m/min |
| Repositioning Accuracy | ±0.05mm |
| X Y Z working Accuracy | < 0.02mm |
| Spindle | 3.5KW water cooling spindle(Optional: air cooling spindle) |
| Spindle rotating speed | 6000-24000rpm/min |
| Collect size | ER 25 |
| Operation language | G code (plt, mmg, uoo, bmp) |
| Driving system | Easy servo motor |
| Operating system | Ncstudio control system |
| Working voltage | 380V/3phase |
| Software | UcancamV8 / Type3 / Artcam software (option) |
Features:
1. Simple operation and installation, when delivery we will provide the videos for training.
2. More steady and strong equipped bed structure with thick steel.
3. Equipped with 3.5KW air cooling spindle, can be optional water cooling spindle, more powerful, enough to cut more thickness materials.
4.The pressing handle oiling system
5. Dust collector, helping to suck the dust, milling dust, keeping the machine clean.
6. Ncstudio control system, can be optional DSP control system.
7.Taiwan HIWIN square guide rail, high precision and long life time, rack and pinion transmission, high speed.
8. Vacuum adsorption table with 5.5KW vacuum pump, it can adsorb the materials on the table , more stable when engraving wood doors
9.Higher configuration is optional, such as servo motor and SYNTEC control system
Samples:
Packaging and shipping:
Some other machines in our factory:
We have built factory more than 10 years.,if you were interested in our machine,welcome contact us,we'll give you a best result:
