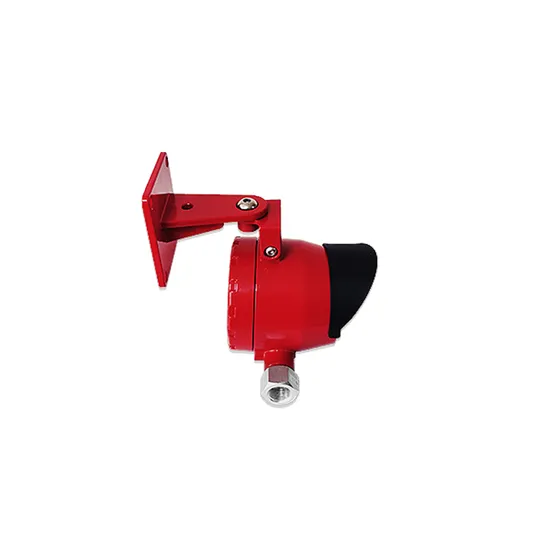

Industrial Multi-Level Sensitivity Flame Detector IR3 Three-Band Infrared Flame Detector Hart Output (optional)

Product Description

Product Description Description
FD10-IR3 triple IR flame detector is a new type of intelligent fire detection equipment. The detectors uses 3 infrared sensors with different wavelengths with narrow-band filtering. One sensor is used to reflect the center wavelength of the flame information. The other two sensors is used to monitor other infrared radiation in the environment. Combining with the flicker characteristics of the flame, analyzing through high-speed microprocessors and calculating by mathematical algorithms, the radiation spectrum with flame characteristics is confirmed as a fire alarm.
The detector suppress the interference of sunlight, lightning, electric welding, thermal radiation, electromagnetic interference, mechanical vibration and other interference, thus achieving the rapid response and accurate identification of the flame signal.
Features
Using high-speed, low-consumption and high-performance 32-bit data processing chip
Excellent resistance to radio frequency and electromagnetic interference
Perfect patent algorithm, fast response, high stability, strong anti-false alarm ability
Detection angle of 90°
The longest detection distance can reach 50 meters
Multi-level sensitivity settings to meet the needs of different occasions
Magnetic bar adjusts sensitivity, no need opening the cover on site
Explosion-proof design, suitable for hazardous areas in many types of industrial sites
Hart output (optional)
Application
Heavy industry applications, tunnel industry, oil and gas tank farm, power industry and petrochemical industry, etc.
Detailed Photos
Product Parameters
Company Profile
FAQ
FAQ
Q1: Why do you choose our company?
A1: We are a professional manufacturer, We have seasoned engineers with 20 years' experience in gas detection field. so we can offer products of the same quality at the best prices.
Q2: Can I have a sample order?
A2: The sample order to test are welcomed at the first time.
Q3: What certification do you have?
A3: CE, EN, BSI, UL, ISOD and etc.
Q4: How do I get price information?
A4: Sales representatives are responsible for providing detailed price information within 1 workday after get your inquiry.
Q5: If I order a large quantity, what's the best price?
A5: Please send the detailed enquiry to us, including item model number, quantity for each item, quality requirement, Logo and payment terms etc. We will make an accurate quotation to you at the earliest time.
