Kn-700-3 PVC Woodworking Edge Bander Machinery Wood Manual Automatic Curve Edge Banding Machine with Trimmer

Product Description

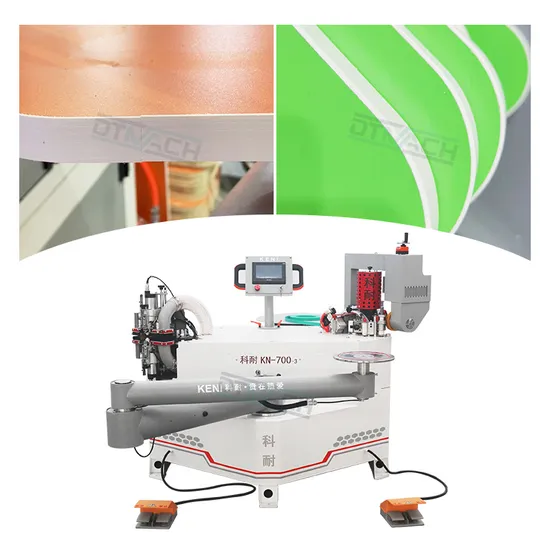

KN-700-3 automatic curve edge banding machine with trimmer
DTMACH automatic curved edge banding and trimming machine features:
1. Automatically feeding for curve board, Especially for round, oval, rounded rectangle
2. Laser ranging, precise docking (docking error ±0.3mm), high accuracy, no need the cut strip manual.
3. PUR and EVA, discharge glue by one click.
4. Servo motor, which has fast action response and low noise. The machine has good stability.
5. Feeding speed is 0-30cm/s, high work efficiency.
6. The machine has 4 cleaning devices, which automatically spray cleaning liquid. Adjustable spray time and intermittent time.
7. The capacity of the glue pot is increased to 2600ml, and there is no need to add glue frequently. Heat preservation function of the glue pot reduces the waiting time for heating by one-click.
8. The touch screen can store 20 kinds of sheet data, which is convenient to use sheet data and greatly improves work efficiency.
9. Adopts 2L pressure-retaining air storage tank, when the external air pressure is unstable, it can ensure the normal operation of all pneumatic components of the whole machine.
10. 1 heating devices make the bonding between strips and the board more firmly.
Client Feedback
Product Parameters

Voltage	380V/50HZ/3phase
Total power	6.5KW
Edge banding speed	0-30cm/s
Air pressure	0.6-0.8Mpa
Vacuuming φ150mm	φ150mm
Glue pot temperature	110ºC-210ºC
Tank capacity	2L
Glue material	PUR/EVA
Glue pot volume	2600ml
Strip thickness	0.5-3mm
Trimming	14-70mm both sides trimming, <14mm single trimming
Strip width	12-70mm
Size	1870*1400*1530mm

Detailed Photos
Feeding Automatically
Especially for: ROUND, OVAL, ROUNDED RECTANGLE


Laser Ranging
Laser ranging, docking error ±0.3 mm.


Rotatable 15°
Banding part can be rotated 15°, and the processing curve board is flexible.

Both PUR & EVA
InnerTeflon layer. Discharge glue by one-click.


Product Display
Company Profile

Certifications
Packaging & Shipping
FAQ
Q1: I want a edge banding machine , can you give me some suggestions ?
A : Sure, we will give recommend of the most suitable machine. Before that, we need to know some information, such as board thickness, strips material, local voltage etc .
Q2: Which kind of materials can be processed on this machine?
A : PVC, melamine, plastic and other materials.
Q3: Are you a factory or trading company ?
A: We are the manufacturer for 20 years. You can fully trust the machines we produce . Most importantly, we will provide you with the most thoughtful and best after - sales service.
Q4: How should I pay for my order?
A: Pay 50% as prepayment as first, then we will start to make production. When the machine is completed, we will send pictures or videos to you, and then you need to pay the balance. We will ship the machine to you after we receive your full payment .
Q5: How long is the delivery time ?
A : For standard machines, it will be 12-15 days . For customization, it will be 15-30 days .
