High-Quality 10m3 Diesel Cement Mixer Truck for Export
Basic Info.
Model NO.
JSXT-CMT
Type
Concrete Mixer
Shotcrete Type
Wet
Machining Process
Hydraulic
Structure
Dump Type
Productivity
120m²/h
Feeding Height
1400mm
Vibrating Amplitude
2.6mm
Certification
ISO9001: 2000
Condition
Used
Color
Orange and Gray
Kerb Weight
14500kg
Material
Carbon Steel Q355
Drum Body Thickness
5mm
End Cover Thickness
6mm
Agitating Capacity
10m3
Discharging Rate
≥2 M3/Min
Residual Rate
≤0.5%
Radiator
18L
Emission Standard
Euro 3
Fuel Type
Diesel
Transport Package
by Bulk Cargo Ship / RO-RO/Container Vessel
Specification
9400mm*2500mm*3850mm
Trademark
JSXT
Origin
Henan, China
HS Code
970519990
Production Capacity
50000/Year
Product Description
Large Capacity JSXT Brand 10 Cubic Meter Diesel Used Concrete Mixers TruckProduct Parameters
The parameter of mixer truck
| Overall parameter | |
| Overall dimension | 9400x2500x3850mm |
| Kerb weight | 14500kg |
| Mixing Drum parameter | |
| Mixing drum material | High quality wear-resistance steel |
| Model:Q355 | |
| Drum body thickness: 5mm, End cover thickness:6mm | |
| Agitating capacity | 10M3 |
| Charging rate | ≥3 m3/min |
| Top feed hopper dimension | ≥650 mm |
| Discharging rate | ≥2 m3/min |
| Residual rate | ≤0.5% |
| Water supply | Baric water supply system |
| Water tank capacity | 450L |
| Radiator | 18L |
| Reduction gear | TOP P68 Reducer, Italy technology |
| Hydraulic pump | ARK PV089 Pump,Italy technology |
| Hydraulic motor | ARK MF089 Pump,Italy technology |
| Accessory | Tool box |
| Chassis parameter | |
| Chassis Brand | SINO Truck |
| Chassis model | ZZ1257N3841W |
| Axle base | 3825+1350 |
| Driving type | Left hand drive(LHD) |
| Engine model | WD615.69 |
| Rated power (HP) | 336HP |
| Emission standard | Euro 3 |
| Fuel type | Diesel |
| Transmission(Gear box) | HW13710 |
| Front axle | Drum type |
| Rear axle | HC16 Driving axle |
| Tyre | 12.00R20(10+1) |
| Cab type | HOWO 76 (with air-conditioner) |
Detailed Photos
The detailed photos of mixer truck

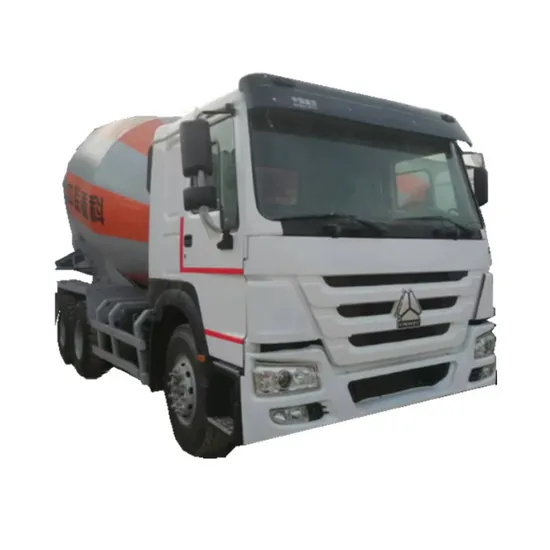

product picture
More photos of mixer truck
Company Profile
Our Advantages
1.Container: The cheapest and fast one; put the machine into container need disassemble.
2.Flat rack: Often used to ship two wheel loader, max load-bearing is 35tons.
3.Bulk cargo ship: which is better for bigger construction equipment, no need disassemble.
4.RO RO ship: The machine is driven directly into the ship and does not need to be disassembled.
FAQ
Q: Do you have your own factory?
A: We have our own factory and we sincerely welcome you to visit our factory.
Q: Can I get a sample or order 1 unit?
A: Yes, you can order 1 unit and our MOQ is 1 Unit.
Q: How about the warranty?
A: Our company promise a one-year warranty period. during this period, under normal use if there is damage to the accessories, we will provide our customers with free replacement.
Q: How about the after sales service?
A: We provide technical support and spare parts for long life time of our products.
Q: If Customized Service Provided?
A:Yes, Please contact our sales manger, We can offer customized service on Vehicle Design / Painting/Logo, Etc.
Q: What's your payment terms?
A: T/T: 30% deposit by T/T, 70% balance should be paid before shipment.
L/C: 100% irrevocable Credit of Letter at sight.
