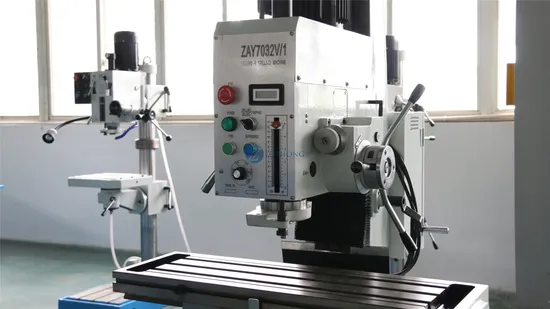

Chinese Variable Speed drill machine ZAY7040V-1 Drilling And Milling Machine for sale

Product Description

Chinese Variable Speed drill machine ZAY7040V-1 Drilling And Milling Machine for sale
Product Description
Detailed Photos
Product Parameters
The main performance characteristics:
driven and round column
Milling, drilling, tapping. Boring and reaming
Headstock swivels 360 horizontally
Micro feed precision
12 steps speed
Adjustable gibs on table precision
Posive spindle lock
Strong rigidity, powerful cutting and precisely positioning
Standard accessories:
Allen wrench
Drift
Spanner
Drill chuck rod
Screw-driver
Draw bar and gasket
Optional accessories:
Stand
Oil basin
Power feed attachment
Machine vice
Drill chuck
Milling cutter holder
Reducing sleeve
Mill chuck
Boring rod
Tapping electrical system
Coolant system
Product main technical parameters:

ITEM	ZAY7040V/1
Max.drilling capacity	40mm
Max Face mill capacity	80mm
Max End mill capacity	32mm
Distance from spindle nose to table	450mm
Min.distance from spindle axis to column	260mm
Spindle travel	130mm
Spindle taper	M.T.4 or R8
Range of spindle speed(2 steps)	100-530,530-2800r.p.m,
Auto-feeding step of spindle	6
Automatic feeding amount of spindle	0.06-0.30mm/r
Swivel angle of headstock (perpendicular)	±90°
Table size	800×240mm
Forward and backward travel of table	175mm
Left and right travel of table	500mm
Motor power(AC)	1.1KW
Voltage/Frequency	110V or 220V
Net weight/Gross weight	323kg/373kg
Packing size	770×880×1160mm

Company Profile
FAQ
1:How can I choose the most suitable machines ?
A: Please tell me your specifications ,we can choose the best model for you , or you can choose the exact model .
You can also send us the products drawing ,we will choose the most suitable machines for you .

2: What's your main products of your company?
A: We specialized in all kinds of machines ,such as CNC Lathe Machine ,CNC Milling Machine ,Vertical Machining Center ,
Lathe Machines ,Drilling Machine ,Radial Drilling Machine ,Sawing Machine ,Shaper machine and so on .

3: Where is our factory located? How can I visit there?
A : Our factory is located in Tengzhou City ,Shandong Province,277500 China. You are warmly welcomed to visit us.

4. What is your trade terms?
A : FOB, CFR and CIF all acceptable.

5: What's the Payment Terms ?
A : T/T ,30% initial payment when order ,70% balance payment before shipment ;
Irrevocable LC at sight .

5: What's the MOQ?
A: 1 set .(Only some low cost machines will be more than 1 set )
