Mini Excavator for Reliable Performance in Construction and Earthmoving
| US$3,600.00-4,050.00 | 1 Piece (MOQ) |
Basic Info.
Model NO.
HFT12-9
Type
Crawler Excavator
Usage
Special Excavator, Marine Excavator, Mining Excavator, GM Excavator
Bucket
Grab Shovel
Transmission
Hydraulic Transmission
Drive Type
Internal Combustion Drive
Bucket Capacity
0.1~0.5m³
Size
Small-Scale
Certification
CE, ISO9001: 2000
Condition
New
Digging Radius Max
2400mm
Digging Depth Max
1650mm
Digging Height Max
2490mm
Unloading Height Max
1750mm
Swing Radium Min
1190mm
Digging Radius Min
1320mm
Transport Package
Container
Specification
Mini
Trademark
HFT
Origin
China
HS Code
8429521200
Production Capacity
5000/Year
Product Description

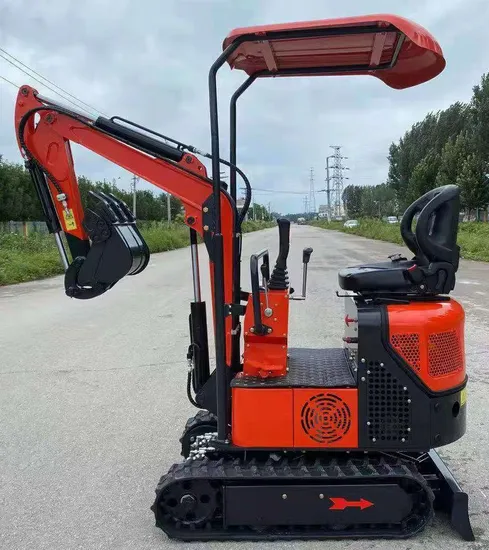

Product Name: HFT12-9 Mini ExcavatorCategory: Excavator
Others: HFT12-9 New Mini Excavator
Introducing the HFT-12 Mini Excavator - a marvel of modern engineering that seamlessly blends robust power with compact efficiency for truly unparalleled excavation performance. This innovative HFT12 model is equipped with cutting-edge technology and a sleek, contemporary design that sets it apart from traditional excavators. Expertly engineered to excel in confined spaces, the HFT-12 Mini Excavator is your ideal partner for construction sites, landscaping ventures, and utility installations. With its exceptional versatility, unmatched durability, and user-friendly operation, it is designed to stand out in any machinery fleet. Choose the HFT-12 Mini Excavator and revolutionize your workflow, experiencing an unprecedented boost in productivity and quality with every project.
| Model | HFT12-9 | |
| Performance parameters | Unit | Specification |
| Rated power | KW | 8.6 |
| Standard Bucket Capacity | m3 | 0.02 |
| Wheel distance | mm | 770 |
| Track total Length | mm | 1090 |
| Platform ground clearance | mm | 380 |
| Platform turning radius | mm | 733 |
| Chassis width | mm | 800-950 |
| Track width | mm | 180 |
| Track height | mm | 320 |
| Working range | Unit | Specification |
| Digging ground radius max | mm | 2400 |
| Digging depth max | mm | 1650 |
| Digging height max | mm | 2490 |
| Unloading height max | mm | 1750 |
| Swing radius min | mm | 1190 |
| Digging radius min | mm | 1320 |
| Dozer blade max lifting height | mm | 175 |
| Dozer blade max digging depth | mm | 325 |
| Dimension | Unit | Specification |
| Total width | mm | 1090 |
| Total height | mm | 2200 |
| Total length | mm | 2650 |
| Working weight | kg | 1000 |
| Engine | type | Koop 192F Euro 5 |
