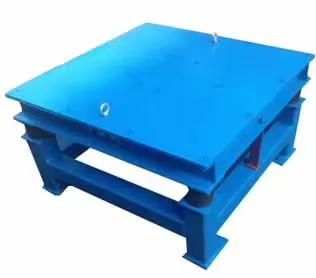

Concrete Mold Paving Vibrating Table Electric Vibration Table for Concrete Moulds

Product Description

Overview
The vibration table is also called a vibrating bench and is mainly used for the compaction of materials to reduce the air and gaps in the material. General use with silos.
The composition of the vibration table:
1. The vibration table is mainly composed of four parts: bracket, table vibration mechanism and shock absorption mechanism. The three-dimensional vibrations such as horizontal, vertical, and top and bottom vibrations are driven by the vibration mechanism.
2. The vibration mechanism of the vibration table is mainly composed of several vibration motors and transmission plates. The number of vibration motors is generally even number, such as: 4, 6, 8, 10, etc. The type of vibration motor determines the main technical parameters of the three-dimensional vibration table. .
3. The vibration-damping mechanism of the vibration table is mainly composed of shock-absorbing springs. It is divided into rubber springs, compound springs and inflatable springs.
product use
The vibration table is widely used in metallurgy, mold/food, chemical, building materials and other industries.
The vibration table is used in the production process to transform the granular and powdery materials from bulk to bulk and shape.
product features
1. During the use of the vibration table, it is possible to achieve the ideal form of materials on the platform by adjusting the size of vibration excitation force of the vibration motor.
2. The vibration motor is an excitation source with low noise, low power consumption and simple maintenance.
3, ZDP series vibration table structure is simple. Reliable operation, light weight, small size, easy installation.
4, vibration table is divided into up and down vibration, spiral vibration and three-dimensional vibration of three vibration modes.
5,Simple structure, reliable operation, light weight, small size, easy installation.
6,High power, large table; maximum power 7.5kw, exciting force 80KN, can bear sand box weight 8T.
7,The height of the table is adjustable, suitable for use on the assembly line.
8,Three-dimensional vibration, suitable for complex cavity castings.
9,Infinitely variable speed, in the modeling process, the best compaction effect can be obtained without harming the model.
10,Self-locking function ensures accurate positioning on the production line. The

Model	Area(m2)	power(kw)	Amplitude(mm)	Weight(kg)
ZDP-500×500	0.25	2×0.25	2-5	300
ZDP-1000×1000	1	2×0.4	2-5	600
ZDP-1200×1200	1.44	2×3	2-5	1200
ZDP-1500×1500	2.25	2×3	2-5	2000
ZDP-3000×3000	9	6×1.5	2-5	3000
