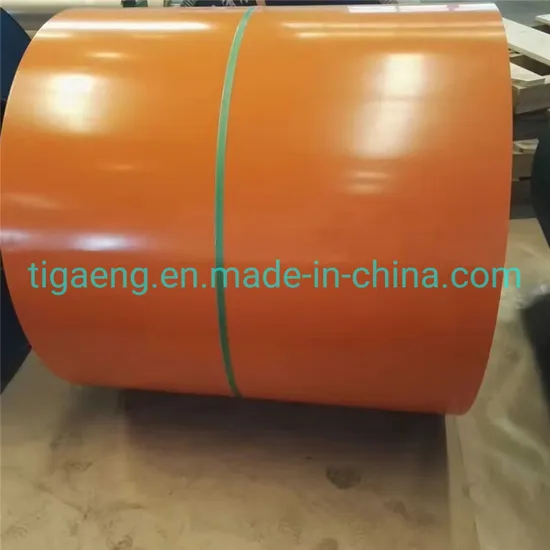

PPGI PPGL Red Blue Green Color Coated Roofing Sheet Roll Prepainted Galvalume Galvanized Steel Coil
| US$620.00-950.00 | 5 Tons (MOQ) |
Basic Info.
Model NO.
0.12-0.8*10-1250mm
Standard
ASTM, JIS, GB, AISI, DIN, BS
Certification
ISO, RoHS, IBR
Surface Treatment
Coated
Technique
Cold Rolled
Application
Roofing Sheet, Electric Appliances
Edge
Slit edge
Stock
Stock
Color
Ral Color Code or Color Sample
Base Material
Galvanized Cold Rolled Coil
Paint
PE, SMP, HDP, PVDF
Usage Type
Roofing Tile, Electric Appliances
Paint Brand
Nippon/Kzonobel
Coil Weight
3~5ton
Usage
Home Appliances
Coating Type
2/2, 2/1 Coating
Inner Diameter
508mm;610mm
180degree Bend
0-3t
Impact
9j
Zinc Coating
40-275G/M2
Top Paint Layer
15-35microns
Back Paint Layer
7-35microns
Transport Package
Seaworthy Package
Specification
0.13-1.5*10-1250mm
Trademark
TIGA
Origin
China(Mainland)
HS Code
7210701000
Production Capacity
3, 000, 000 Ton/Year
Product Description
1) Brief introductionPPGI is pre-painted galvanised iron, also known as pre-coated steel, coil coated steel, color
coated steel etc, typically with a hot dip zinc coated steel substrate, that is the galvanized steel
is painted before forming, as opposed to post painting which occurs after forming
2) Product processing
Entry end-twin decolier-cleaning-entry looper-pretreatment-pretreatment oven-prime coater-
prime oven-quench unit-finish coater-finish oven-embosse-quench unit-quench unit-exit looper
-shear-coiler-exit end
3) Application
1) Mainly for automotive industry, household appliances, furniture, containers, cooking utensils
2) Contrustion of the outdoor roof, foof, structure, terrace, panels
3) Doors, screens, ceilings, bathrooms, stairs ventiilation chanel, communication channels
4) Coating structure
1. Coating systems or configurations can be ustomized as client's requirements
2. Top coat can be 3-coat system (primer + base coat + finishing coat)
3. Backing can be single service coat or primer + backer coat +finishing coat
4. Both sides can also be color coated Color matching services provided for free
5) Details
It can be subject to roll forming, lock forming and press forming because they are two coated -
two baked with a high grade color resin of their tight and flexible pre - treatment film
| Name | Prepainted Galvanized Steel Sheet |
| Type of substrate | Hot dip galvanized, Galvalume, Electro galvanized, Cold rolled steel, Aluminium |
| Thickness | 0.13-1.5mm |
| Tolerance | Thickness: ±0.01mm |
| Width | 600-1250mm ( Normal:1250, 1200,1000, 914, 900, 762, 750mm) |
| Top Paint | 15-35 micron(Normal:10-20mic) |
| Back paint | 7-35 micron(Normal:5-7mic) |
| Coil weight | 3-5 tons or as your requirement. |
| ID | 508/610 mm |
| Grade | SGCC/DX51D+Z, DX52D+Z, SGCD/DX53D+Z,SGCE/DX54D+Z, SGCH |
| Coating type | Top paint: PE, SMP, HDP, PVDF, PU |
| Functions: Decorative, Machinability, Weather resistance, Scrath resistance, Stain resistance, Chemical resistance, Adhesion resistance | |
| Primer paint: Polyurethane, Epoxy, PE | |
| Functions:Machinability,Corrosive resistance,Adhesion, Scrath resistance | |
| Back paint: Epoxy, Modified polyester | |
| Functions: Scrath resistance, Bending adhesion, Corrosive resistance | |
| Packing | Standard export package .Plastic film in the first layer,second layer is Kraft paper. Third layer is galvanized sheet. |
| Application | Building industry, structural use, roofing, commercial use, household appliance, industry facilities, office buildings |
