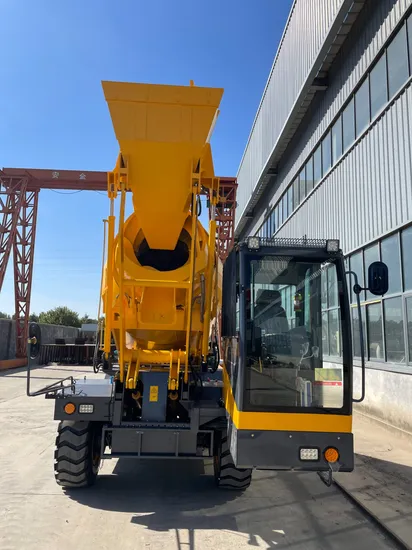

6.5m3 Self-Loading Cement Concrete Mixer

Product Description

Equipped with China 6-cyliner (110KW) Turbo charged diesel engine. The standard configuration includes driving camera, automatic water feeding & metering system, hydraulic water suction pump, cooling & heating air conditioner, The mixing drum can slew through 270 degrees for high discharge over 2.0m on the four sides of the vehicle. The rotating speed of drum has reached 20 rpm, which has improved working efficiency by 30% compared to its competitor in the industry. The application of wet brake of front axle, air brake, double brake system and construction tyres, increases the safety and stability of the mixer truck. Full load with 40% grade ability makes our mixer be the leading position in the industry. The external water pump is equipped with water suction change-over switch, which can fill water into water tank and drum respectively. The vehicle size is small, which is suitable for limited site and widely used in new rural construction, urban construction, tunnel, airport, seaport, high-speed rail site, remote areas where there are no electric power, middle projects, farmer's houses, building, country road, irrigation, reservoir, mine, rural bridges, high-way road etc, which characterized in saving labors, high efficiency concrete output. High strength steel plate, which enhances the load capacity and high stability of vehicle. The material of rolling ring and mixing drum adopts 16mn high strength steel which uses forging normalizing manufacturing process. Mixing blade is designed with varying pitching angles, which simplifies the feeding device, ensures the speed faster and mixing performance better.

Name	Item	Specification
	Net	12000 KG
	Transmission	Full Hydraulic 4 WD
	Brake	Air Brake
	Chassis	Off-road
	Tread	1880mm
	Wheelbase	2250mm
	Loader bucket	capacity	0.6m3 Hydraulic Control
	Tilt angle	30%
	Speed	High			0-25KM/H
		Low			0-9KM/H
	MAX drum capacity	6.2M3
	Tyre model	16/70-20 wire tyres
Engine	Type	YTO		4108 Turbo charged
	Rated Power/RPM	110KW/2200RPM
	Max.Torque/RPM	460N.M/1400RPM
	Cylinder	4
	Starter	Electric
	Cooling type	water cooling
Maxing Drum	Output capacity	4 M3
	Bank Angle	16 °
	Rotation Angle	19-21R/min
Chute	Swing Angle	≥60°
	Angle control	Hydraulic
	Weighing model	computer control
		Concrete Standard				C15.C20.C25 C30
	Accuracy	Cement				≤±2%/time
		Relative Error				≤±3%/time
		water				≤±1%/time
		Additive				≤±1%/time
		Admixture				≤±2%/time
Loader control	Hydraulic 4 way stick
Size	7500x2700x3380mm
