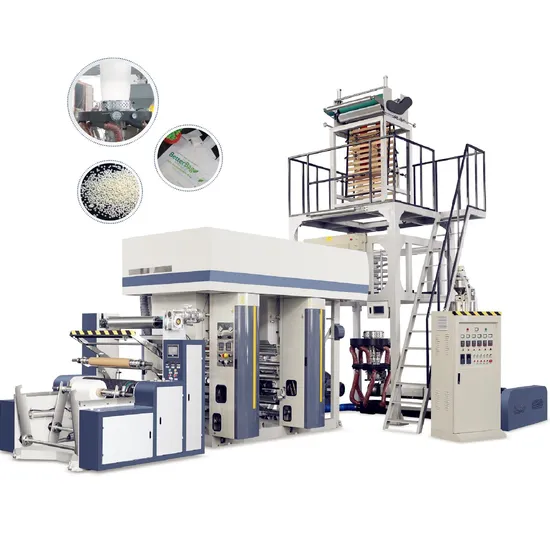

Full Automatic 2 Color Biodegradable Film Blowing Printing Inline Machine
Basic Info.
Model NO.
SJ-55/800
Type
Biodegradable Film
Raw Material
Biodegradable Film
Maximum Folding Width of Film
600-1500mm
Screw Diameter
50*2/55*2
Automation
Automatic
Computerized
Computerized
Machine Weight
10T
Certification
CE, ISO9001:2008
Material
HDPE. LDPE, Biodegrade, PLA
Film Width
800/1000/1200/1500mm
Screw Material
Bimetalic High Speed Screw
Die Head.
Single Layers
Air Ring
Double Lips Air Ring
Speed
100-120kgs/H
Rewinder
Automatic Cutting and Change Roll
Motor Brand
Siemens Brand
Inverter
Delta Brand
Electrical Parts
Schneider
Power
3p/380V/415V/220V
Transport Package
Standard Wooden Box, etc.
Specification
CE, ISO
Trademark
SANBI
Origin
China
HS Code
8477301000
Production Capacity
60-120kgs/H
Product Description
HIGH SPEED Biodegradable HDPE LDPE PLASTIC film blowing with 2 color printing machineUse:
The lines are designed developed by our corporation according to market need, they reach the advanced levels in the 90s, come up with analogous lines in home.
It is optimum designed on the trounds of preference of analogous lines in foreign and home.
SPECIFICATIONS
| Model | SJ-P50 | SJ-P55 |
| Screw Diameter | Ф50 | Ф55 |
| Screw Ratio L/D | 30:1 | 30:1 |
| Screw Speed | 15-120r/min | 15-120r/min |
| Main Motor Power | 15Kw | 22Kw |
| Extrusion Output | 50-60kg/h | 90kg/h |
| Range of Die | Ф120 | Ф150 |
| Single-sided Thickness of Film | 0.02-0.10mm | 0.02-0.10mm |
| Max. Folding Width of Film | 600mm | 800mm |
| Electric Total Capacity | 50Kw | 80kw |
| Overall Dimension | 5000×3200×5500mm | 5000×3500×6000mm |
| Weight of Machine | 5T | 6T |
