Stainless Steel Sheet 6015 CNC Metal Fiber Laser Cutting Sheet Metal Plate Hydraulic Fold Stirrup Profile Roll CNC Pipe Wire Bending Machine

Product Description

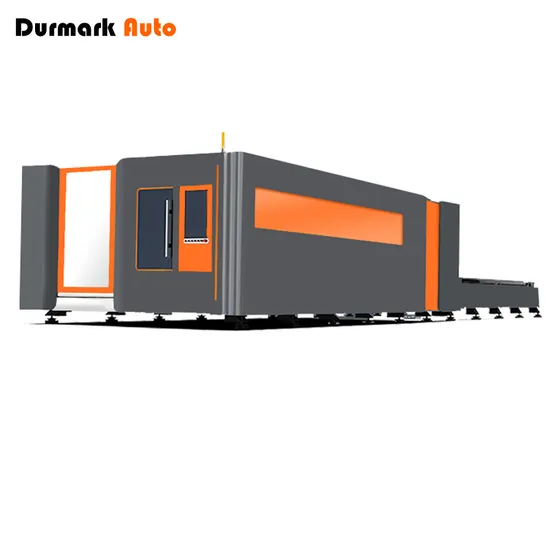

Stainless Steel Sheet 6015 CNC Metal Plate Laser Cutting Machine with Nice Price
Fiber laser cutting works by focusing the power of a high-power laser onto the surface of the material to be cut.
The energy in the laser beam is absorbed into the surface of material, and the energy of the laser is converted into heat, which melts or vaporizes the material.
Additionally, gas is focused or blown into the cutting region to expel or blow away the molten metal and vapor from the cutting path.
Choosing a Fiber laser cutting system will provide a number of advantages over traditional CO2 lasers, because of their high quality beam, Fiber lasers will allow you to cut, engrave and mark a wide range of metallic materials.
Our range of Fiber machines can be specified in a variety of power outputs ranging from 500W and up - which will provide you with a machine capability of cutting sheet metals such as 12 mm thick stainless steel depending on the machine power.


Technical Parameter

Model	DLC-6015 / 3000w
CNC Control Unit	WEIHONG CNC System
X axis (Rack & Pinion)	6000 mm
Y axis (Rack & Pinion	1500 mm
Z axis (Ball Screw)	100 mm
MAX Cutting Thickness (carbon steel)	25mm
Work piece dimensions	1525 x 6050 mm
Rapid traverse (X and Y axis)	120 m/min
Acceleration	1.2G (12m/s2)
Vector speed	108 m/min
Absolute positioning accuracy	± 0.08 mm
Repeatability (X and Y axis)	± 0.03
Feed rat	Programmable up to 30 m/min
Programmable assist gases	Programmable assist gases C
	Air	0-6 Bar
	Oxygen	0-6 Bar
	High Pressure	0-25 Bar
Focusing lense	5" ve 7.
Fume extractor	1000 m3/hour
Dispose
Laser Cutting Head	WSX from Switzerland
Laser Power	MAX from CHINA /Raycus /Reci/JPG
Servo motor/ Servo drive	Fuji from Japan's Brand
Reducer	Motovario from France Brand
X ,Y-axis Rack	L.ENDA from Germany Brand
linear guide rail	SLM from Germany Brand
Cable	Dorou from Germany Brand
Cooling water	HanLi from China Brand
Air conditioner	TongFei from China Brand
regulator	Durmark From China Brand
Air system	SMC From Japan's Brand
Industrial computer	Hyundai From Korea Brand

Main Features
1. With dual-drive Gantry mechanisms, imported rack, pinion and linear guide for high speed steady transmission and high precision
2. Overall steel welding machine, rough machining after annealing.
3. Cooperated with vibration aging treatment to eliminate the stress of the welding and machining, maintained long term using without deformation.
4. Greatly improving the response speed and bed stability during working.
5. Japan imported servo motor for the X, Y, Z axis, high precision, high speed, high torque, large inertia, performance is stable and durable.
6. The servo motor combination ensure the machine's high speed and acceleration.
7. Based on the Windows operating system of fiber laser cutting machine CNC system, integrates a number of laser cutting control specific modules for better function.
8. Best human-computer interface, easy to operate.
9. With U. S. Lasermech produced special cutting head, and capacitive sensing, high precision induction and responsive for the most stable and reliable performance.
Typical Fiber Laser Cutting Applications
Precision engineering.
High precision sheet metal profiling.
Cutting metallic and non-metallic products.
Marking components for tractability, serial no. plates, ID plaques, VIN Numbers.
Industry Sectors Applied to
Medical
Automotive
Aerospace
Aviation
Marine Engineering
General Manufacturing
Detailed Photo
Our Service Pre-Sales Service *Inquiry and consulting support
*Sample testing support
*Recommend the most suitable machine according to customer's purpose
*Factory visiting welcomed
After-Sales Service
*Training how to install the machine
*Training how to use the machine
*Warranty 1 year
*Engineers available to service machinery oversea
