Passenger Elevator Lift with FUJI Brand Small Sightseeing Home Elevator Lift or Panoramic Glass Elevators in China Own Factory
| US$8,000.00-11,500.00 | 1 unit (MOQ) |
Basic Info.
Model NO.
FUJI-A
Persons
6
Speed
0.4m/S-1.75m/S
Control Mode
Collective Selective Control
Position of Computer Room
Without Computer Room
Elevator Door
Center Opening Door
Door Knife
Single
Deceleration Device
With Deceleration Device
Attendant
Without Attendant
Product Price
$8000-11500/Unit
Production Time
Within 25-30 Days
H.S Code
8428101090
Machine Room
with and Without
Transport Package
High Quality Export Wooden Case
Specification
Hairline Stainless Steel
Trademark
FUJI
Origin
China
HS Code
8428101090
Product Description
Standard Decoration Optional(if you have other request,we can provide)
| It's wall | Hairline stainless steel |
| Ceiling | According to the car design |
| Car bottom | PVC |
| Jamb material | Hairline stainless steel |
| Hall door | Hairline stainless steel |
Passenger Elevator Parameter
Passenger Elevator Parameter
| Load capacity (Kg) | Rated Speed m/s | Car Size cw*cd(mm) | Door Opening Size ew*eh(mm) | Shaft Size hw*hd(mm) | Top floor height Th(mm) | Pit Depth (mm) |
| 450 | 1 | 1100×1100 | 800×2100 | 2050×1850 | 4500 | 1500 |
| 630 | 1 | 1400×1100 | 800×2100 | 2250×1900 | 4500 | 1500 |
| 1.5 | 4700 | 1600 | ||||
| 1.75 | ||||||
| 800 | 1 | 1400×1350 | 800×2100 | 2200×1950 | 4000 | 1500 |
| 1.5/ 1.75 | 4700 | 1600 | ||||
| 1000 | 1 | 1500×1550 | 900×2100 | 2350×2150 | 4000 | 1600 |
| 1.5/ 1.75 | 4700 | 1600 | ||||
| 1600 | 1 | 1800*2000 | 1100*2100 | 2900*2200 | 4350 | 1500 |
| 1.5/ 1.75 | 4500 | 1600 |

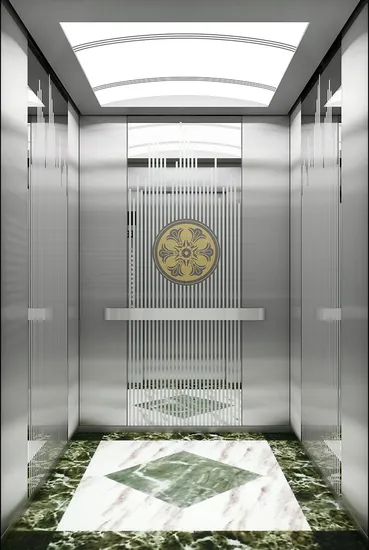

Elevator decoration
Standard Functions
| No. | Description name | Description | No. | Description name | Description |
| 1 | Static electricity protection | Eliminate static electricity raised from running of steps. | 11 | Over-load protection | Protection against risk of motor continually over-load. |
| 2 | Emergency stop button | Push the emergency stop button to shop the escalator/moving walk against emergency raise. | 12 | Step sagging protection | Protection against risk of steps being breakage and sagging. |
| 3 | Skirting protection | Protection against risk of foreign bodies being jammed into clearance between steps and skirting. | 13 | Broken step chain protection | Protection against risk of steps being breakage or under elongation. |
| 4 | Handrail entry safety protection | Protection against risk of foreign bodies being jammed into handrail entry. | 14 | Comb teeth safety protection | Protection against risk of foreign bodies being trapped at the point where the step enter the comb. |
| 5 | Main drive chains safety protection | Protection against risk of drive chains being breakage or undue elongation. | 15 | Handrail speed and broken handrail monitor | It detects the handrail speed and monitors the broken handrail. |
| 6 | Over-speed protection | Protection against risk of speed being over 20% of rated speed. | 16 | Skirting anti-clamp device | It sets protection brush in the skirting on both sides of the step. |
| 7 | Under-speed protection | Protection against risk of speed less than over 80% of rated speed. | 17 | Step missing detection | It detects the step missing in the stairway. |
| 8 | Un-intentional reversal protection | Protection against risk of unintentional reversal protection. | 18 | The brake opens the monitor switch | It monitors whether the brake opens or not in during the escalator running. |
| 9 | Floor-plate monitor switch | When the pit cover plate opens,it cuts off safety circuit and stops the escalator safety switch. | 19 | Handwheel and handwheel protection cover open safety | During the use of handwheel,when open the handwheel and the handwheel protection cover,the safety switch will cut the safety circuit against escalator running. |
| 10 | Short circuit protection | Protection against risk of short circuit. | 20 | Lack of phase,error phase protection | Protection against risk of phase failure. |
