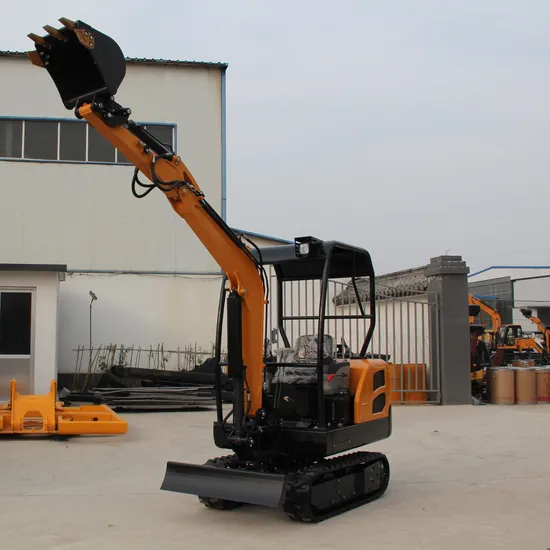

Chinese Mini Crawler Excavator Yn18

Product Description

Product Description
Product Feature And Advantage

1.Zero tail design,small size and easy to transport, could be loaded onto light truck or small trailer,extended track could reduce the width to 990mm.
2.Original Kubota engine,reliable duration, low noise and high efficiency.
3.Most advanced loading sensing system and self developed hydraulic debug technology ensure the machine's operation easy and comfortable.
4.Famous brand hydraulic system parts ensure the stable quality.
5.equipped with double fuel filter to guarantee fuel purity to protect engine
6.boom deflection design meet narrow work condition, reinforced rubber track to protect road
7.extend hydraulic line for various attachments.
8.comfort seat make operator easy to work.
9.Could be widely used in gardening, orchard, farming, basement reconstruction, waste residue carrying in coal washing factory, paper making factory etc. and could replace 4~5 manpower.
Detailed Photos
Product Parameters
Engine

Model	Kubota 14.2kW/2200rpm
Type	Direct injection, water cooled, natural intake
No. of cylinder	3

Main Performance

Swing Speed	r/min	0-9
Traveling Speed	km/H	2.8
Grade ability	%	70(35°)
System rated pressure	Mpa	21.5
Ground Pressure	Kpa	30
Tracking Force	Kn	15.2
Bucket Digging Force	kN	18
Arm Digging Force	kN	11

Hydraulic System

Hydraulic Pump		Italian
Main Valve		Italian
Swing Motor		Eaton
Traveling Motor		Eaton
Fuel Tank Capacity	L	17
Hydraulic Tank Capacity	L	18

Overall Dimensions

Overall Length	mm	3555
Overall Width	mm	990/1300
Overall Height	mm	2290
Ground clearance	mm	150
Undercarriage width	mm	990
Dozer Blade	mm	1050×240

Operation parameters

Operation Weight	KG	1900
Bucket Capacity	m3	0.07
Max. Digging Radius	mm	4040
Max. Digging Depth	mm	2400
Max. Digging Height	mm	3700
Max. Dumping Height	mm	2440
Max. Dozer Cutting	mm	270
Max. Dozer Lifting	mm	240
Boom Deflexion (Left/Right)	°	75/45

Packaging & Shipping
Company Profile
Company Profile
Founded in 1999, Shandong Yineng Heavy Industry Co., Ltd is a large-scale construction and agricultural equipment manufacturing enterprise integrating R&D, production and sales. The company has more than 400 employees, 8 senior engineers and 12 professional technicians. The products cover wheel loaders, underground mining machine, grass grabber, off-road forklift and etc, with 7 series, more than 100 models and equipment in total. Yineng has passed the ISO9001:2000 international quality management system certification and assessment of State Engineering Machinery Quality Supervision & Testing Center.
The company has been invited to participate in large-scale international exhibitions such as the Canton Fair, the Hanover Agricultural Machinery Exhibition in Germany, and the Bauma Fair for more than ten years. With first-class technical standards, top-notch manufacturing processes and personalized customization services, Yineng has established a broad customer network around the world, with customers all over Germany, Russia, Brazil, Iran, Saudi Arabia, Australia, Thailand, South Africa, etc. More than 40 Many countries and regions.
FAQ
1. who are we?
We are based in Shandong, China, start from 2009,sell to Domestic Market(82.00%),South America(5.00%),Southeast Asia(5.00%),Oceania(5.00%),Mid East(3.00%). There are total about 101-200 people in our office.
2. how can we guarantee quality?
Always a pre-production sample before mass production;
Always final Inspection before shipment;
3.what can you buy from us?
Wheel loader/Mining Machinery/Forklift/Excavator
4. why should you buy from us not from other suppliers?
We have 20 years of professional experience in designing and producing loaders with1-6 tons capacity, for engineering, agricultural, mining virious use. Our products features reliable quality, good after-sales service, reasonable price.
5. what services can we provide?
Accepted Delivery Terms: FOB,CFR,CIF,EXW,CIP,DDP,DAF;
Accepted Payment Currency:USD,EUR,CNY;
Accepted Payment Type: T/T,L/C,Cash;
Language Spoken:English,Chinese,Spanish,Russian
