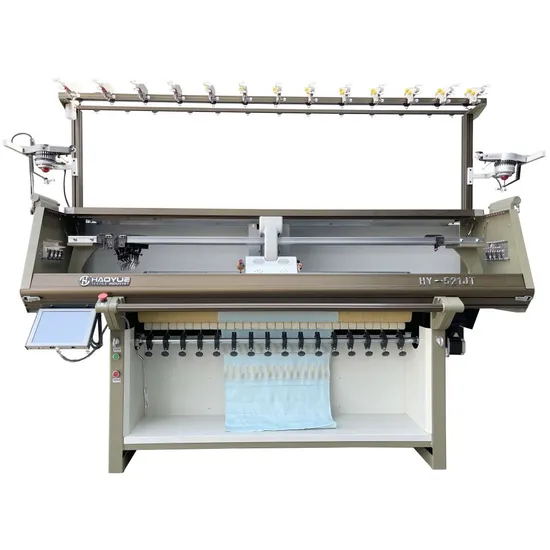

Ningbo Haoyue Automatic Computerized Collar Cuffs Knitting Making Machine
Basic Info.
Model NO.
HY-521J
Knitting Machine Cut
E14
Knitting Product Type
Collar
Knitting Style
Flat
Knitting Method
Double
Needle Style
Bearded Needle/Spring Needle
Needle Bar Style
Flatbed Knitting Machine
Computerized
Computerized
Certification
CE
Condition
New
After-sales Service
Video Technical Support/on-Site Technical Support
Knitting Function
Professional Fully Jacuard
Knitting Width
52 Inch(36-100inch)
Gauge
14gauge(12-18gauge)
Knitting System
Single/Double System
Control System
Dahao System
Transport Package
Wooden Case
Specification
2400*1050*1800MM/650KGS
Trademark
HAOYUE TEXTILE INDUSTRY
Origin
China
HS Code
8447202000
Production Capacity
100sets/Month
Product Description
Product Description| NINGBO HAOYUE PROFESSIONAL FULLY JACQUARD COLLAR KNITTING MACHINE Specially designed for knitting collar and rib; through the extreme requirements in straightness, flatness and precision of machine parts such as bed- base, guide rail, needle-bed, cam-board and cams. We solved these problems that fabric lines grain is not clear, two edges of collar are different and flatness is not enough.This series with milling type needle bed. This series adopts digital technology, which can realize the functions of transfer, tuck, hole picking, jacquard, needle narrowing, and other regular pattern knitting functions of the flat knitting machine. This series can weave basic knitting patterns (full needle, single side, Etc.), multi-color irregular jacquard, and twisted weft knitting. This series is suitable for knitting collar and clothing accessories. This series used DAHAO control system. |
| DOUBLE CARRIAGES FULLY JACQUARD COLLAR KNITTING MACHINE | |
| Single carriage without transfer | Single carriage with transfer |
| DAHAO CONTROL SYSTEM The machine system can be customized according to your requirements. | DAHAO CONTROL SYSTEM The machine system can be customized according to your requirements. | DAHAO CONTROL SYSTEM The machine system can be customized according to your requirements. |
| SINGLE CARRIAGE Linear velocity of the head can reach 1.6m/s. Each system is equipped with five functions as rib transfer, weaving, non-weave and pin. In addition, it is secured by short-circuited electromagnetism, motor overcurrent. Locked-Rotor, etc... | NEEDLE BED Insert part fits with the needle are made of imported steel through fine blanking and grinding, which reduces the wear and tear of the stitches, decreases the resistance of the stitches, and effectively improves the knitting efficiency. | DOUBLE CARRIAGE Linear velocity of the head can reach 1.6m/s. Each system is equipped with five functions as rib transfer, weaving, hangging head, non-weave and pin. Can work separately or in combination with double system. |
| YARN GUIDE RAIL 4/3 pcs yarn guide rail, can 8/6 yarns can be used by any weaving system and can be switched at any position. | SERVO MOTOR Using cani control, can achieve the rapid return and direction changing of the machine carriage, accurate positioning, smooth conmutation . | 8/6 PCS YARN FEEDER The 8/6 yarns can be switched at any position. According to different knitting speed the control program can automatically adjust the position. |
| AUTOMATIC RESET PROBE Automatic reset function, which ensures any deviation of the probe can be reset automatically regardless of the area. | POSITIVE YARN FEEDER Positive yarn providing, successfully reduce yarn resistance, increase knitting efficiency. | LYCRA DEVICE In order to make the machine work better, we have developed 24-hours intelligent system for automatic refueling. |
Machine Paramenters
| Gauge | 12G,14G,16G,18G | |||
| Knitting width | 36,42,52,60,68, 80,100inch | |||
| Knitting system | Single carriage Double carriage | |||
| Knitting speed | Maximum 1.6m/s. (depending on knitting wide and knitting material) | |||
| Knitting function | Fully jacquard, Knitting, line jacquard and plain design etc. | |||
| Needle-bed | Milling type needle bed; Insert type needle bed(optional) , with 8 sets of solenoid needle selection structure. | |||
| Racking | Controlled by servo-motor racking within 2 inches and with fine adjusting function. | |||
| Stitch density | Controlled by stepping motor, 32 section stitch select-able adjustable scope supported by subdivision technology: 0-650, the stitch of the knitwear can be accurately controlled. | |||
| Take-down system | Infrared alarm,Computer programs instruction, stepper motor control,32-stagetension selection with an adjustable range between 0-100. | |||
| Color-changing system | 2×3 yarn feeders on each side of 3 guide rails, shift able on any needle position. | |||
| Protection system | The machine will automatically alarm if yarn-breaking, knots, floating yarn, rewind, end of knitting, fail of racking, needle breakage, error programming occur, also set up the safety auto-lock protect device. | |||
| Control system | 1. LCD industrial display, Can display various parameters, which can be adjustable during operation. 2. USB memory interface,System memory 2G. 3. Free design system is visual and easy to understand and software upgrade free of charge. 4. Support multi-language operation as Chinese and English, Spanish, Russian etc. | |||
| Network function | Has network interface,enable remote-monitoring via network,and connecting with ERP system. | |||
| Power supply | Single-phase 220V/three-phase 380V,adopt advanced CMOS technology, having memorizing function at power shock stop. | |||
| Volume and weight | 2200*900*1700mm,600kgs(42inch) 2400*900*1700mm,650kgs(52inch) 3500*900*1700mm,900kgs(80inch double carriages) | |||
Product packaging
| Model | Knitting Width | Package Machine Size(MM) | Gross Weight(KGS) | |
| HY-421J | 42 inch | 2300*1050*1800mm | Around 600kgs | |
| HY-521J | 52 inch | 2500*1050*1800mm | Around 650kgs | |
| HY-802J | 80 inch | 3500*1050*1800mm | Around 900kgs | |
Knitting Samples
Company Introduction
NINGBO HAOYUE is a professional high-tech manufacturer, production & sales of computerized flat knitting machine and professional collar knitting machine(such as sweater, shoe upper, polo collar,rib, scarf, hat,blanket etc.) By 25 years concentration and persistence,accumulated experience and technical progress, We have won the trust from many domestic and overseas suppliers. We own abundant technical advantages. Excellent facility,perfect quality management system. We will offer better quality, better service, better prices to our customers. People foremost, success through quality. Mutual benefit and double-win outcomes are our conception.
EXhibition
| Contact Us |
NINGBO HAOYUE TEXTILE TECH CO.,TLD.
We wish you complete success in your business development.
Welcome to visit US.
