Injection Molding Mould for Plastic Washing Machine Products Home Appliance Parts

Product Description

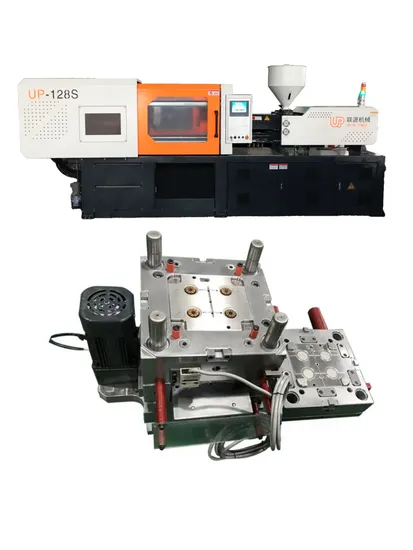

UP-128 Features of injection molding machine:
servo type injection molding machine
1.More space between pull rods
2.Central clamping structure
3.Famous components
4.Servo motor energy saving
5.Low noise, 0.05 second fast response;
6.High precision, stability and long service life
7.T-groove pressing plate.servo motor injection mould.
8.Rich spare parts
9.Better price
10.Low water consumption (because the system will not pressurize at all stages of the process
11.Low maintenance electrical and hydraulic.servo type injection molding machine.
12.Reduce the power consumption by up to 80% according to the cycle. Machines with a cycle of more than 18seg start to save energy
13.Flow and pressure output control sensor; Frequency converter
2.Clamping device:
1.) Optimized formwork design, high rigidity and large pull rod spacing
2.) Platen Layout based on Europe, with T-slot and tap hole, positioning design in mobile template to better adapt to various molds
3.) New ejection system design, longer ejection stroke, larger space and better rigidity
4.) Hydraulic drive gear type mold adjusting mechanism.servo energy injection molding machine .
5.) The mechanical safety interlock device is repositioned for more convenient operation
6.) The structure of the front connecting rod greatly increases the strength of the connecting rod, as well as the rigidity and accuracy of the entire clamping unit.
3.Injection device:
1.) High-quality linear motion guide ensures the smoothness and accuracy of the injection process
2.) High Speed&Pressure injection structure can improve the injection speed
3.) Double nozzle cylinder ensures a more uniform and stable structure
4.) Special screw barrel design for various instruments
4.Hydraulic system:
1.) Dual proportional composite valve controls the pressure and flow of the system, which is highly sensitive and stable
2.) Imported high-quality water pump with low noise, long service life and stable performance
3.) It can be equipped with world-famous servo hydraulic system, with better low noise and energy saving performance
4.) The servo system has accurate feedback control of pressure and flow

Technical Parameters	Model UP-128
Injection Unit	A	B	C
Screw diameter (mm)	40	42	45
Shot Volume (cm3)	227	251	288
Injection weight (g)	204	1440	1636
injection pressure (Mpa)	203	226	259
Screw speed (rmp)	0-200
Clamping Unit
Clamping force (KN)	1280
Open stroke (mm)	360
Max Mold height (mm)	400
Min Mold height (mm)	150
Space between tie bars(mm)	420x380
Ejector force (KN)	38
Ejector stroke (mm)	100
Others
Pump pressure (Mpa)	16
Motor/driving power (KW)	11(11.5)
Heating power (KW)	7.3
Machine dimension (M)	4.3x1.15x1.85
Machine weight (T)	3.6
Oiltank cubage (L)	200
