High Frequency Online UPS Model Rxg 1kVA to 3kVA
| US$103.00 | 1 Piece (MOQ) |
Basic Info.
Model NO.
RXG1-3KVA(T)
Protection
Short Circuit
Application
Communication
Classification
Lighting/Power
Standby Time
Standard Machine
Standby UPS
Sine Wave Output UPS
Output Capacity
Large Type
Equipment Mode
Decentralized
Brand
Kemapower
Size
See The Detail in The Web
Transport Package
Safety Packing
Specification
RC1K-3KVA
Trademark
KEMAPOWER
Origin
China
HS Code
8504402000
Production Capacity
600, 000PCS/Year
Packaging & Delivery
Package Size
57.00cm * 55.00cm * 22.50cm
Package Gross Weight
36.000kg
Product Description

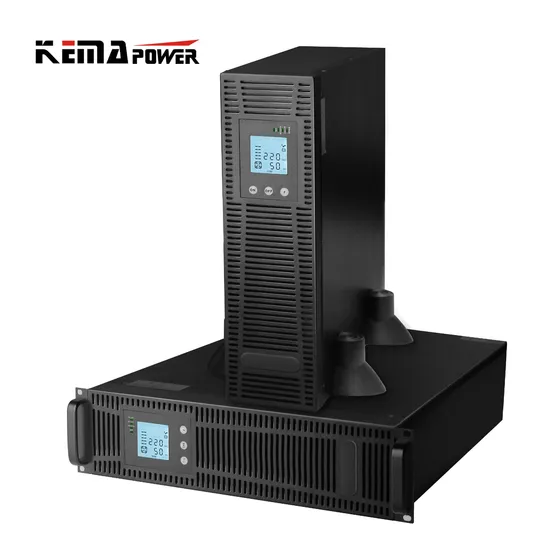

High Frequency Rack Mounting Online UPSRXG 6-10K(T)
KEY FEATURES LCD Rack Mounting High Frequency Online UPS 6K 10KVA DSP digital control, double conversion, Zero transfer time Single phase sine wave, output PF 0.8/0.9, LCD display rotatable, to meet rack mounting / tower convertor requirement Self-testing, ECO function and adjustable VAC and HZ by panel Advanced Input PFC technology, 0.99 Wide input voltage range, input Frequency 40-60HZ, support Generator Advanced battery management function, charging while UPS off mode Lightning and surge protection, Short circuit and overload protection RS232 or USB communication with monitoring software SNMP, EPO option, Rack mounting and Tower Convertor Option TECHNICAL SPECIFICATIONS
| ITEM | MODEL | RXG6K(T) | RXGC6KS(T) | RXG10K(T) | RXG10KS(T) |
| Capacity | VA / Watts | 6KVA/5.4KW | 6KVA/4.8KW | 10KVA/9KW | 10KVA/8KW |
| Input | Normal Voltage | 220VAC, L+N+G | |||
| Input Voltage Range | 100- 280±5V while load≤50% | ||||
| 150-280±5V, while 50%<load≤80% | |||||
| 160-280±5V, 80%<load≤90% | |||||
| 175-280±5V while load>90% | |||||
| Frequency Range | 50/60±10% | ||||
| Input Power Factor | >0.99(220VAC,full R load) | ||||
| Generator | Support generator input(Generator rating≥2*UPS rating | ||||
| Output | Voltage Range | 220VAC+-1% | |||
| Frequency Range | 48Hz/54Hz(AC mode), 50HzX(1±0.1%)(Battery mode) | ||||
| Waveform | Pure Sine Wave | ||||
| Transfer Time | 0 ms | ||||
| Distortion (Full Load) Linear Load | < 3% | ||||
| Distortion (Ful l Load) Nonlinear Load | < 5% | ||||
| Overload Capacity | 105%~125% ,1min then transfer to bypass and alarm. 125%~150% 30s then transfer to bypass and alarm,1min then cut off output. >150% ,0.5s then transfer to bypass and alarm. | ||||
| Load Peak Ratio | 3:1(max) | ||||
| 192VDC Battery PacK | MODEL | RBP167 | N/A | RBP167 | N/A |
| Type | Maintenance free valve regulated lead acid (VRLA) battery | ||||
| Battery Voltage | 192VDC | 192VDC | 192VDC | 192VDC | |
| Battery Capacity | 16*7AH | External | 16*7AH | External | |
| Around backup time (Full load) | 4Mins | Depended on battery capacity | 3Mins | Depended on battery capacity | |
| Around backup time (Half load) | 12Mins | Depended on battery capacity | 9mMins | Depended on battery capacity | |
| Recharge Time | 7 hours to 90%capacity | Depended on battery capacity | 7 hours to 90%capacity | Depended on battery capacity | |
| 240VDC Battery Pack | MODEL | RBP207 | N/A | RBP207 | N/A |
| Type | Maintenance free valve regulated lead acid (VRLA) battery | ||||
| Battery Voltage | 240VDC | 240VDC | 240VDC | 240VDC | |
| Battery Capacity | internal 20*7AH | External | internal 20*7AH | External | |
| Around Backup Time (Full Load) | 7Mins | Depended on battery capacity | 5Mins | Depended on battery capacity | |
| Around Backup Time (Half Load) | 20Mins | Depended on battery capacity | 13mMins | Depended on battery capacity | |
| Recharge Time | 8 hours to 90%capacity | 5Amp charger | 8 hours to 90%capacity | 5Amp charger | |
| LED Display | LED | Load level / Battery level / Battery mode / Line mode / Inverter /B ypass /Over load / Fault | |||
| LCD Display | Option | BAT VDC and % , Input VAC and HZ , Output VAC and HZ, Load W and % ,Temp.Fault Code | |||
| Audible Alarm | Battery Mode | Beeping every 4 seconds (re-settable) and every second when battery | |||
| Overload | Beeping twice every second | ||||
| UPS Fault | Beeping Continuously | ||||
| Bettery Low/Charger Fault | Beeping every 1 second | ||||
| Bypass Mode | Beeping every 2 min | ||||
| L/N Inverse | Beeping every 2 min | ||||
| Communications | RS-232 Interface | With monitoring software. USB Option | |||
| working Environment | Working Temperature | ,- 20ºC~40ºC | |||
| Humidity | 0-95% non-condensing | ||||
| UPS | Product Size WxDxH (mm) | 483 x 600 x 132(3U) | 483 x 600 x 132(3U) | 483 x 600 x 132(3U) | 483 x 600 x 132(3U) |
| Package Size WxDxH (mm) | 795*590*330 | 795*590*330 | 795*590*330 | 795*590*330 | |
| Gross Weight(Kg) | 27 | 28.5 | 34 | 35 | |
| RBP167 BAT Pack | Product Size WxDxH (mm) | 483 x 600 x 132(3U) | N/A | 483 x 600 x 132(3U) | N/A |
| package Size WxDxH (mm) | 795*590*330 | N/A | 795*590*330 | N/A | |
| Gross Weight(Kg) | 65 | N/A | 65 | N/A | |
| RBP207 BAT Pack | Product Size WxDxH (mm) | 483 x 600 x 132(3U) | N/A | 483 x 600 x 132(3U) | N/A |
| package Size WxDxH (mm) | 795*590*330 | N/A | 795*590*330 | N/A | |
| Gross Weight(Kg) | 74 | N/A | 74 | N/A | |
| optional functions | ECO | optional | |||
| EPO | optional | ||||
| SNMP | optional | ||||
| REMARK | RXG*K--- Standard Type, RXG*KS---- Long Time Type | ||||
| Option | Convertor for Option | ||||
