Japan Brand New Elf 700p Cargo Box Type Truck Mounted 6t Crane Truck with Crane 5tons Crane Truck Lorry-Mounted 7t Crane 6000kg Loader Cranes

Product Description

Product Description

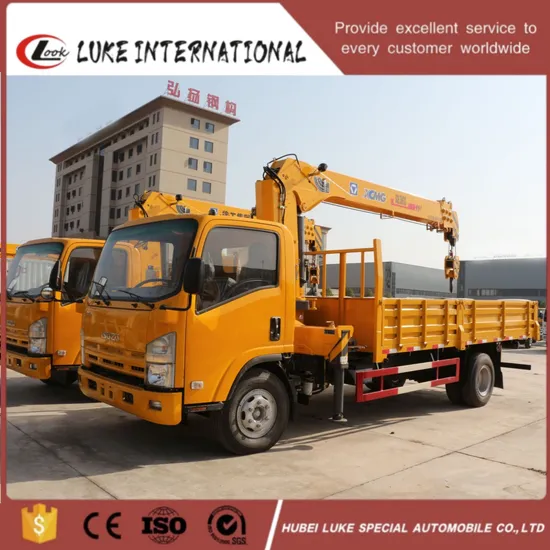

Japan Brand New Elf 700p Cargo Box Type Truck Mounted 6t Crane
Truck With Crane 5tons Crane Truck
Lorry-mounted 7t Crane 6000kg Loader Cranes
Truck mounted crane, also known as truck-mounted crane,crane truck,cargo truck with crane,cargo truck crane,crane cargo truck, in some places according to custom, also called truck crane, self-crane, etc. It integrates hoisting and transportation, and is mostly used in stations, warehouses, docks, construction sites, wilderness rescue and other places. It can be equipped with cargo compartments of different lengths and cranes of different tonnage. You can also add a water tank to the carriage to form a crane sprinkler truck.
More choice:
Crane capacity:2-20T
Engine power:max 430Hp
Driving steering:LHD or RHD
Driving type:4x2, 6x2, 6x4, 8x4, 4x4, 6x6, 8x8
Emission standard:Euro 2, Euro 3, Euro 4, Euro 5, Euro 6
Brand optional:Howo,FAW,SHACMAN,JAC,JMC,FOTON,1suzu,Hongyan,Beiben,all China brand,some German brand,Japan brand

GVW Driving Type 4x2
Model		Japan truck mounted crane
Cab		ELF 700P single row cab, tilted,air con
Engine(Hp)		190
Power(Kw)		141
Wheelbase		4475
Front/Rear Suspension		1110/2365
Steering		Power steering
Approach/departure angle		20/10
Wheels & tire		235/75R17.5
Tire number		6+1
Cargo Dimensions(mm)		5360×2150×500
RHD or LHD		OPTIONAL
Engine	Model	4HK1-TC51
	Horsepower	190
	Maximum output Kw	141
	Maximum torque N.m	510
	Type	4 cylinders, in-line,4-stroke,water-cooled,turbo inter-cooling, diesel engine
	Displacement	5.193L
	Japan brand, Euro 5
Driving passenger	3
Transmission	MLD 6 speed forward manual
Front Axle	4T
Rear Axle	7T
Brake System	air brake ,exhaust brake
Color and LOGO	customized
Electric system	24V
crane	Model		SQS157
	Max lifting height		12.8m
	Max working radius		11.2m
	Max loading		6300kg
	Type		Straight arm
	Arms number		4
	Turning angle		360°
Standard configuration	truck crane equipped between the cabin and van body.
Optional configuration	Any other famous brand crane, such as Palfinger, it can also be equipped in the rear of the truck, hydraulic legs optional.
Delivery date	Within 50 days after receipt advance
Packing	Nude Pack .The packing of the commodity shall be in accordance with the export standard packing of the manufacturer, be suitable for long distance transportation of ocean and inland. The Seller shall be take measures against moisture, shocks and rust according to the special needs of the commodity.

Detailed Photos
Accessories and spare parts
Company Profile
Main products
Packaging & Shipping
FAQ
1.Q:Are you a factory or a trade company?
A: Hubei Luke Special Automobile Co., Ltd., is a Fatory and trade combination for special purpose vehciles in China.
2. Q: Where is your factory located?
A: We are located in Suizhou City, Hubei Province, China.
3.Q:How can I visit there?
A:You will be welcomed for factory inspection, you could take plane to Tianhe airport, or take high speed train to Suizhou Station directly, we will pick you up there.
4. Q: what's your payment terms?
A:T/T & L/C are preferred.
5.Q:Do you arrange shipment for the vehicles?
A:Yes, we can arrange shippment based on trade terms.
6.Q: Warranty?
A:12 months(except for artificial damage).
7.Q:How is the packing?
A:AII the packing comply with exporting standard.
8.Q:How long is the lead time?
A:20-25 working days.
For other questiones, we will reply you ASAP after receiving your consult.
We still have more different brand model for your reference, such as: Hongyan truck mounted crane, HOWO truck mounted crane, 1SUZU truck mounted crane, Foton truck mounted crane, Beiben truck mounted crane, SHACMAN truck mounted crane, Dongfeng truck mounted crane, JAC truck mounted crane, JMC truck mounted crane,FORLAND truck mounted crane, FAW truck mounted crane, etc,.
