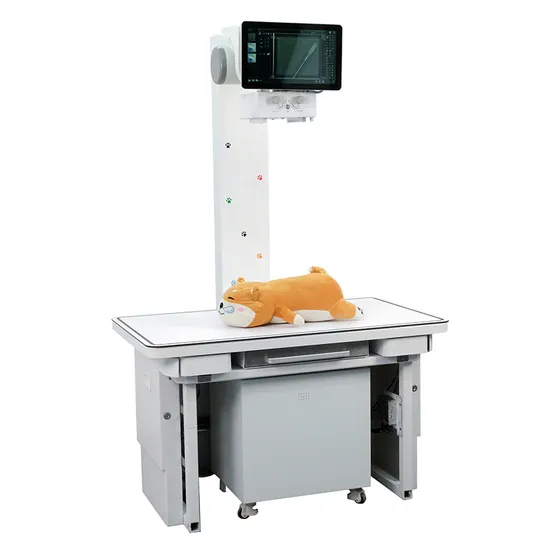

20kw 32kw Digital Vet Dr X-ray Table Small Animal Xray Fluoroscopy Equipment Fixed Veterinary Dog X Ray Machine

Product Description

20KW 32KW Digital Vet DR X-ray Table Small Animal Xray Fluoroscopy Equipment Fixed Veterinary Dog X Ray Machine
Product Description Essential details Place of Origin: Guangdong, China
Brand Name: MeCan
Model Number: MCV0167
Power Source: Electric
Warranty: 1 Year
After-sale Service: Online technical support
Material: Metal, Plastic
Shelf Life: 1years
Quality Certification: ISO
Instrument classification: Class II
Safety standard: GB15979-2002
Product name: Dog Xray Machine
Name: High Frequency X-ray Machine
Application: Vet Clinic
Function: Vet Medical Radiography
Type: X-ray Radiography Machine
Usage: Medical Radiology
Feature: High Max Density
Package: Wooden Case
Frequency: 20KW
Advantage: Hi-voltage Generator Supply Ability Supply Ability
10000 Set/Sets per Month x ray machine Packaging & delivery Packaging Details
20KW 32KW Digital Vet DR X-ray Table Small Animal Xray Fluoroscopy Equipment Fixed Veterinary Dog X Ray Machine: 1set/wooden case
Port
Guangzhou
Picture Example:
Lead time:

Quantity(sets)	1 - 1	2 - 5	6 - 10	>10
Lead time (days)	10	15	20	To be negotiated

Product Parameters

Generator
Power voltage	1-phase 220VAC ±10%,50Hz,16A
	3-phase 380VAC±10%
Maximum Working Frequency	≥30KHz
Nominal Electric Power	20kw(@100kv,200mA,100ms)
KV range	40-125KV
mA range	10-320mA
mAs range	0.1-400mAs
Photoformy time	3ms-6300ms

X-ray tube
Working voltage	40KV-125KV
Maximum power (0.1 S)	Small focus 20 kw, Large focus 40 kW
Nominal value	Large focus 1.2,Small focus 0.6
Maximum heating filament characteristics	5.3A
Anode speed (50HZ)	2800rpm
Anode angle	12°
Inherent filtering	1.0mmAL/75kV
Anode Heat Content	110KJ(150KHU)
Tube component heat capacity	900KJ(1300KHU

Photos detail
