Hot Sale Heavy Duty Stackable Pallet /Tray/Wire Mesh Cage

Product Description

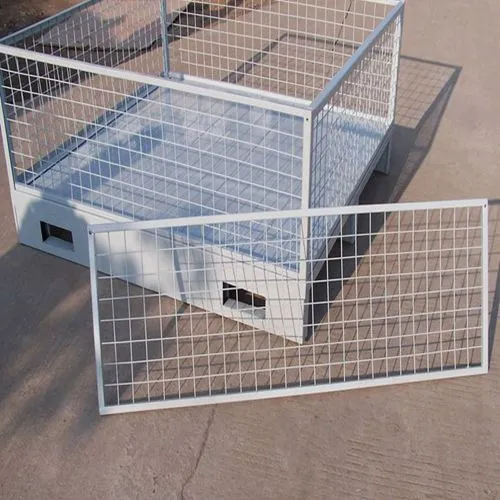

Hot Sale Heavy Duty Stackable Pallet /Tray/Wire Mesh CageThe product is made of welded steel wire, with bottom U-channel welded stiffener, make the structure becomes sturdy, durable, safe and reliable. The storage cage is equipped by paperboard or other protectors to store the goods of easily-scratched-surface. If assited by transportation equipment, it can be used in logistics steps such as transportation, unloading and loading and storage.
Storge Cages/ Wire Containers are applied with conveying equipment which are convenient to transport, turn over and storage. It provides a high-density type of storage system that allow visual inspection of products similar to that of stacking, while providing easy picking access to products when containers are stacked. Folding sides allow the containers to be compactly stored when empty. Customizing special specifications and application storage cage can be made according to specific needs.
Regular Dimensions of Wire Container

Model	Outer Size( L*W*H)	Wire Dia.	Mesh Size	Load(kg)	Stack
A-5	1000*800*840	6.0	50*50	1200	4
B-5	1000*800*840	6.4	50*50	1500	4
B-5(1/2)	1000*800*500	6.4	50*50	1000	4
C-5	1000*800*840	4.8	50*50	500	4
S-5	1000*800*840	6.4	50*100	1000	4
A-7	1200*1000*890	6.0	50*50	1500	4
B-7	1200*1000*890	6.4	50*50	2000	4
S-7	1200*1000*890	6.4	50*100	1000	4
A-3	800*600*640	6.0	50*50	800	4
C-2	800*500*540	4.8	25*50	500	4
D-7	1200*1000*890	5.0	50*50	500	4

Features:
1. Warehouse Management Rationalization
Unified specifications, fixed capacity. storage at a glance. Easy to stock inventory. And a small amount of discharge of accessing a single layered material, to avoid the trouble of turning positions.
2. Saving Space
Use forklift, crane lifter. Can stack four pcs high. Storage cage order to produce the effect of three-dimensional storage. When not in use, collapsible storage.
3. Easy to Use
Special foldable design, simple operation, folding and unfolding lightweight, no space occupying, application wide range, long life performance.
4. Strong and Sturdy
It is spot welded by cold-drawn steel plate, the base is supported by welded U-channel steel. Together with the special tripod, making the job more safely and quickly, the real sector of the factory as a most favorable, the most convenient turnaround appliance.
