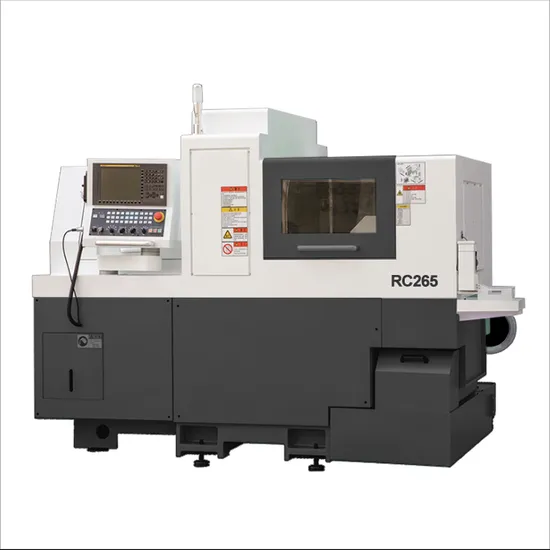

High Precision Swiss Type CNC Lathe Oil Cooled Motorized Spindle Machining Lathe RC265 Swiss CNC Lathe

Product Description

High precision Swiss Type Cnc Lathe Oil Cooled Motorized Spindle Machining Lathe RC265 Swiss CNC Lathe
The main structural features 1.10,000rm maximum spindle rotation speed: ultra-high spindle and back spindle rotation speed, which can provide the best processing conditions when slender materials and small diameter tools are used. 2.250mm single clamping processing length: super long single clamping processing length, the workpiece that needs to be changed to be processed before can be completed in one clamping, which shortens the processing time. 3.Ø26mm Optional maximum clamping device: the diameter of the spindle through hole is Ø26mm, and it can be equipped with a Ø26 clamping device for processing large materials. 4.Both the spindle and the back spindle adopt high-precision built-in electric spindles. 5.The dual-channel design significantly improves production efficiency. Equipped with a special tool holder for the back, it can shorten the processing time through the independent processing of the front/back.
High precision Swiss Type Cnc Lathe oil cooled motorized spindle/Meehanna cast iron double channel control system centering CNC lathe RC265 Swiss Lathe With Great Functions Machining Lathe
Swiss type CNC lathe Dual channel control system; High precision oil cooled motorized spindle; High performance Mihanna cast iron; Quick change of guide mode; Horizontal linear tool layout; Suitable for precision machining of small parts; Five axis walking machine
Application: Widely used in communication, electronics, automotive, pneumatic and hydraulic, medical, instrumentation, aviation and other industries of complex, small, precise, slender shaft parts processing.
SPINDLE TOOL SYSTEM 5 stations for outer diameter tools, 4 stations for inner diameter tools, and 4stations for spindle measuring surface power tools. AUXILIARY SPINDLE TOOL SYSTEM 4-station fxed tool holder,capable of 2 fxed two powerheads. AXIS COORDINATES AND DIRECTION 5 axis coordinates and directions, standard tool layout diagram TAIWAN CONTROL SYSTEM The control panel can be movedand rotated, making it easy to operate and learn.

Item	Specifications	Unit	Remarks
Maximum processing bar diameter	26	mm
Spindle through hole diameter	30	mm
Maximum processing part length	2.5D/MA50	mm	Without guide bush
	180/Enter once	mm	Rotary guide bush
Spindle maximum speed	8000	r/min
Spindle motor power	4.2	kW
Spindle indexing	C-axis function		continuous indexing
Maximum speed of back shaft	8000	r/min
Back shaft motor power	3.1	kW
back axis indexing	C-axis function		continuous indexing
Maximum speed of radial power tool	5000	r/min
Radial power head tool power	1	kW
Maximum drilling diameter of main spindle/sub-spindle	10	mm
Maximum tapping diameter of main spindle/sub-spindle	M10/M8	mm
Maximum drilling diameter of radial power head	8	mm
Radial power head tapping thread diameter	M6	mm
Minimum resolution	0.001	mm
Cooling motor power	0.4	kW
Dimensions	2380/1300/1770	mm
Machine tool net weight	2400	kg
