Roll Bond Thermodynamic Solar Panel for Hot Water System

Product Description

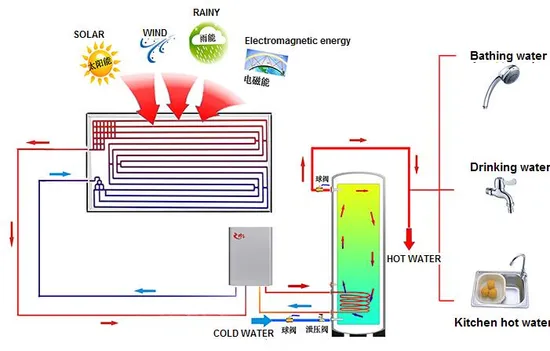

How to work:

A thermodynamic panel is fitted to the outside of the property, usually on a south facing wall or roof. Refrigerant enters the panel at -22°C and is heated by the air around the panel until it becomes a gas. This heat can come from the air, sun or rain as long as the outside temperature is above -22°C. The gas then passes through a compressor which increases the temperature. The heat is released into the water tank through a heat exchange coil to a maximum temperature of 55°C. The cooler refrigerant then circulates back to the panel to be warmed again. The system uses a small amount of electricity to run but mostly relies on the ambient heat outside. For every unit of electricity used, the system will generate 3 - 6 units of heat for your home.
Material: Aluminium 1060/1050
Size: 1700*800, 2000*800, 2000*1000, 1700*500, 1700*900, 1700*990mm
Max Size: 1150mm(width)*2300mm(length)
Thickness: 1.5~2.0mm
Key process: Prepare the material, Cleaning, roughing surface, Printing, Riveting, Rolling, Annealing, Blow up, Punching, Folding and shaping, Capillary connecting, Assembly welding, Leakage Test, Cleaning and drying, Coating, Curing, Inspection, Packing
Advantages
· Do not nee sunlight to generate heat, they can work day or night in all conditions including rain or snow.
· Can provide all hot water requirements up to 55° C
· Significantly reduce CO2 emissions, making yr home greener
· More smaller and more discreet than solar panels and do not need to be roof mounted
· Easy to install.

Raw material	Al-plate: finished products thickness: 1.1 ~ 2.0mm, raw material Al plate thickness: 1.4 ~ 2.5mm
Structure	Double side rollbond evaporator, single side rollbond evaporator, part single side rollbond evaporator
Key process	Prepare the material, Cleaning, roughing surface, Printing, Riveting, Rolling, Annealing, Blow up, Punching, Folding and shaping, Capillary connecting, Assembly welding, Leakage Test, Cleaning and drying, Coating, Curing, Inspection, Packing
Technical Standards	1) Size: width 590mm (max), length 2050mm (max) 2) Can produce according to the drawing or sample supplied by clients, also can help the clients design and produce different models of roll bond evaporator.
Performance	1) Surface treated with powder painting to prevent the corrosion 2) Inner cleanness can meet the requirement of R134a & CFC cooling system. 3) Can satisfy the cooling capability requirements.
Performance	3.5 million sets per year (10000 sets per day)
