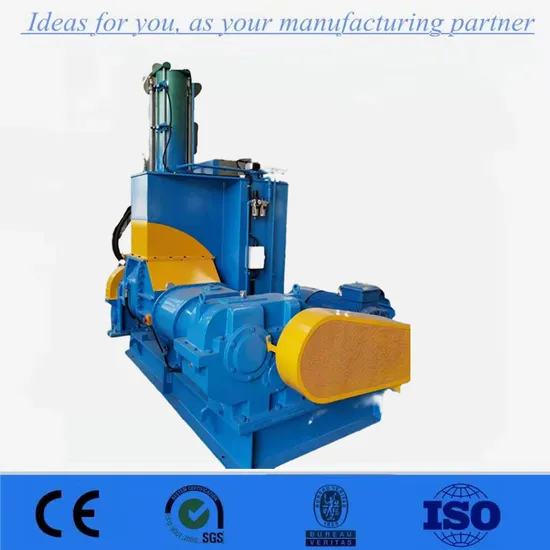

3 Litres Rubber EVA Silicone Banbury Lab Internal Mixer

Product Description

Product Description Rubber kneader internal mixer machine 1. With completely sealed condition, materials are mixed or plasticized under certain pressure, controllable temperature, which makes high production efficiency and obtains excellent stable quality.
2. Spiral angle and over lapping length of the blades of the rotors are of reasonable design and make the materials to be dispersed uniformly.
3. Surface where is contracted with the machine are all plated with hard chromium and polished, which is corrosion-resistant and wear-resistant.
4. Jacket construction is adopted in parts that surfaces contact with materials to achieve excellent water-cooling or steam-heating effect and fit in with the needs of plastics and rubber processing technology.
5. Feeding from back door on the frame(or separate top door) is convenient ofr continuous process operation in production line. The mixing chamber is able to turn forward by 140 around th front rotors to discharge and is easy for changing pigments and cleaning the chamber.
6. Programmable logic controller (PLC) is adopted in the electric-control system, which has reliable control function and alarm function, and interlock safety-protection function and it is provided with serial interface of net.

Model	X(S)N-20*34	X(S)N-35*30	X(S)N-55*30	X(S)N-75*30	X(S)N-110*30
Total Volume (L)	45	75	125	175	250
Working Volume (L)	20	35	55	75	110
Power(KW)	30	55	75	110	185
Tilting Power(KW)	1.5	2.2	2.2	3.0	7.5
Tilting Angle	140°	140°	140°	140°	140°
Rotational Speed (r/min)	34/28	30/24.5	30/24.5	30/24.5	30/24.5
Size(mm)	3100*1300*2450	3200*1900*2945	3300*1900*2900	3760*2143*3135	4075*2712*3580

Products Display
Our Services 1. Factory Acceptance Testing before Delivery

Guarantee time: One year

Other Service Articles:

1.We grant one more set of Oil-seals,

2.We can provide the engineer testing and commonisioning overseas .

3.We can send workers to guide (at uyer's cost for the plane ticket and accommodation)
