Fiber Opener and Pillow & Cushion Filling Machine China Mini Production Line

Fiber Opener and Pillow & Cushion Filling Machine China Mini Production Line

US$5,480.00-25,765.00 1 Set (MOQ)

Basic Info.

Model NO.
KWS-XWZ-500
Feature
Automatic Weighing, Quantitative Down Charging, CE/ISO
Filling Valve Head
Double-Head
Production Line Size
13000*1180*2200mm
Opening Machine Size
3015*1180*2050mm
Fiber Ball Machine Size
2200*730*1350mm
Pillow Filling Machine
5700*2600*2950mm
Net Weight
3235kg
Air Pressure
0.6-0.8MPa
Voltage
380V 50Hz 3p
Power
31kw
Filling Range
100-2000g
Accuracy Class
Down±5g /Fiber ±10
Productivity
500g Pillow :6-10PCS/Min
OEM
Welcome
Appearance Pattern
Customizable
Position of Power Source
Built-in Machine
Filling Material
Fiber Ball, Mixture
Transport Package
Carton
Specification
Standard
Trademark
KIVAS
Origin
China

Product Description

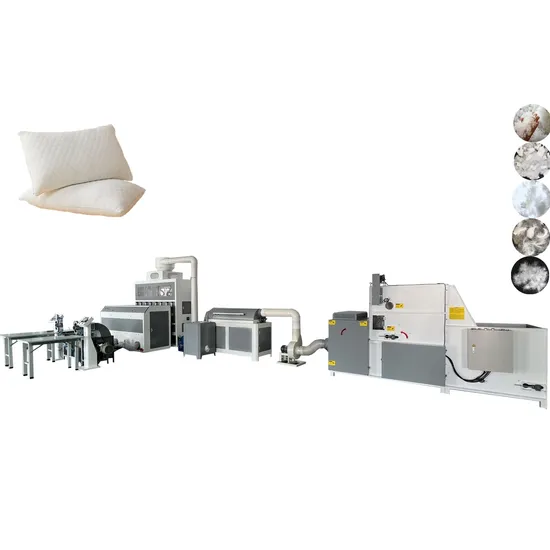

Product Description The fiber pillow filling production line consists of an automatic opening and feeding machine ,a pillow core filling machine, and a fiber ball machine .The total floor area is about 16 square meters. Applicable materials: 3D-15D high-fiber cotton, velvet and kapok (length 10-80mm), elastic latex particles, high-elasticity sponge particles, feathers and their mixtures. 1-5 materials can be mixed for filling.
Filling accuracy: down: ±5 g; fiber : ±10 g. This machine is suitable for products: pillow cores, cushions, outdoor sleeping bags that are filled first and then quilted, etc. The filling nozzle is modularly configured: θ61mm, θ80mm, θ90mm, θ110mm, which can be replaced without any tools according to the product size.The pillow filling machine also can be linked with streamlined equipment such as sponge crusher and down unpacking machine to realize production automation.
Product Name Automatic Fiber Pillow Core Filling Production Line
Voltage 380V50HZ 3P
Power 31KW
Weight 3235KG
Dimension 13000*1180*2200mm
Productivity 500g pillow :6-10pcs/min
Air Pressure 0.6-0.8Mpa
Accuracy class Down±5g /Fiber ±10
Automatic fiber opening and feeding all-in-one machine
This machine is suitable for opening 3-15D fiber cotton. It integrates opening and feeding to improve production efficiency. The machine has a metal detection function, which can detect metal that accidentally falls in and stop running to avoid damage to the machine and extend the service life of the machine.
Automatic weighing pillow filling machine
The machine uses an ultra-large hopper with a single weighing range of about 100-2000 grams, which solves the problem of the inability to accurately quantify large-weight products in the home textile industry. It uses a PLC programmable controller and a high-precision weighing module to achieve more accurate and efficient production capacity. One person can operate two filling mouths at the same time, reducing labor and saving costs.
Company Profile
Customer Visit
Certifications
Application
Customer Feedback
Packaging & Shipping
FAQ Q1.Do you have MOQ?
Depends on different ideas, Can be negotiated.The larger the quantity is, the competitive the unit price will be.

Q2.Should the customer pay the delivery fee,How much is it?
For the delivery fee,many samples are be requested to be sent,so we must get delivery fee.
If you tell me to use the appointed Express,you will give me your express account or you will pay according to the Express.
If you do not request,I will choose a cheap one in China.
Q3.How about the after sale service?
1)We will always keep the quality the same as the buyer's samples and if there is something with the quality,we will make compensation for our coustomers.
2)We will suggest our packing and take charge in our packing,we will keep the goods safe in the delivery.
3)We will trace the goods from the production to selling,we will solve the problems in the selling for our coustomers.
Q4.When can I get a price?
We usually quote within 24hours after we get your inquiry.
Q5: Are you a trade company or manufacturer?
We are a professional manufacturer with our own factory.
