Effortless Dual Coil Agitator for Smooth Mixing and Blending

Product Description

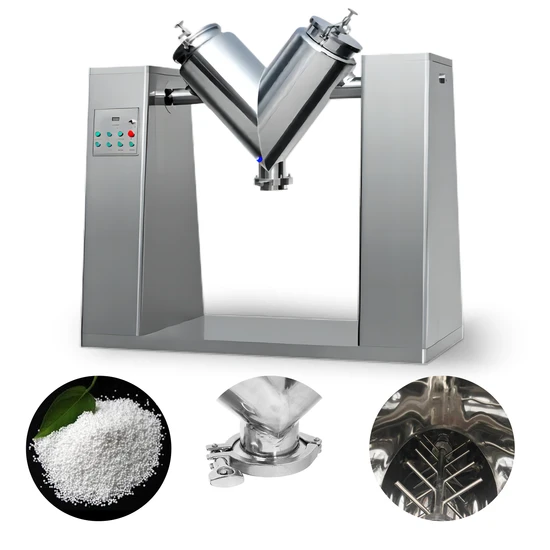

TheV-shape Mixer is a state-of-the-art, high-efficiency, and precision mixing equipment perfect for combining powders or granules across a multitude of industries including chemicals, food, pharmaceuticals, feed, ceramics, and metallurgy. This machine boasts a streamlined and intuitive structure, enclosed operation, and offers both manual and vacuum material feeding and discharging for your convenience. Its stainless steel drum ensures effortless cleaning, making it indispensable for enterprises. With its motor and cycloidal pinwheel reducers, it guarantees rapid mixing, especially suitable for materials with significant differences in specific gravity and mixing ratios. All contact parts are crafted from stainless steel.
Thanks to its superior design and thoughtful engineering, the V-shape mixer delivers rapid and homogenous blending, easy operation, straightforward cleaning, robust durability, compact structure, and advanced technical features. It finds extensive application in pharmaceuticals, food processing, pesticides, zinc oxide, detergents, veterinary medicine, fertilizers, feed, petroleum, metallurgy, building materials, coatings, dyes, pigments, additives, calcium carbonate, biotechnology, ceramics, chemicals, fragrances, seasoning, tea, and beyond for powder material mixing.
Product Features
1. Versatility : Ideal for mixing a wide range of materials including powders, granules, and pastes.
2. Gentle Mixing : Ensures uniform blending without compromising delicate ingredients.
3. Efficient Mixing : Achieves thorough mixing in a remarkably short time.
4. Easy-Cleaning : Designed for quick and comprehensive cleaning between batches.
5. Durable Construction : Constructed with robust materials for extended reliability.
6. Wide Application : Utilized across industries such as pharmaceuticals, food processing, chemicals, and cosmetics.
Technical Parameters

Device Model	RXV-50	RXV-200	RXV-300	RXV-500	RXV-1000	RXV-1500
Volume / L	50	200	300	500	1000	1500
Mixing Capacity kg/batch	20	80	120	200	400	600
Mixing Time / min	10-20	10-20	10-20	10-20	10-20	10-20
Drum Rotation Speed / rpm	12	12	12	10	10	10
Motor Powder / kW	0.55	1.1	1.5	2.2	4	4
Overall Dimensions (Length x Width x Height) / mm	1780×650x1850	110x600x1100	1800x650x1850	2500x850x2420	2950x1400x3100	3190x1450x3100
Overall Rotating Height / mm	1450	1850	1850	2450	3000	3100

Product Display The Equipment Structure1. Support Frame
2. Support Frame
3. Vessel
4. Inlet
5. Discharge Valve
6. Control Panel
7. Motor
8. Sprocket Application
The Double Cone Mixer is versatile enough for industries such aspowder metallurgy, electrical alloys, magnetic materials, battery powders, pearlescent pigments, chemical industry, medical, and food industry.
About Our Company Shijiazhuang Rongxin Technology Co., Ltd.
was established in 2007 and is headquartered in Shijiazhuang, the capital of Hebei Province. Specializing indesigning and providing automated material handling systems, our company has achieved industry leadership, earning numerous patents and accolades, including 'National High-Tech Enterprise' and 'Innovative Enterprise.'
Currently, our company's main products encompass state-of-the-art dust-free enclosed feeding systems, advanced sealed conveying systems, cutting-edge pneumatic conveying systems, and innovative tube chain conveying systems. These superior products find extensive applications across a spectrum of industries, including the robust metal materials sector, the dynamic food processing industry, the intricate chemical industry, the vital pharmaceutical industry, and the ever-evolving new energy industry.Additionally, we pride ourselves on operating a sophisticated production facility equipped with mature and highly efficient manufacturing lines, ensuring that each piece of our equipment meets the highest standards of quality and reliability. Company Certification
