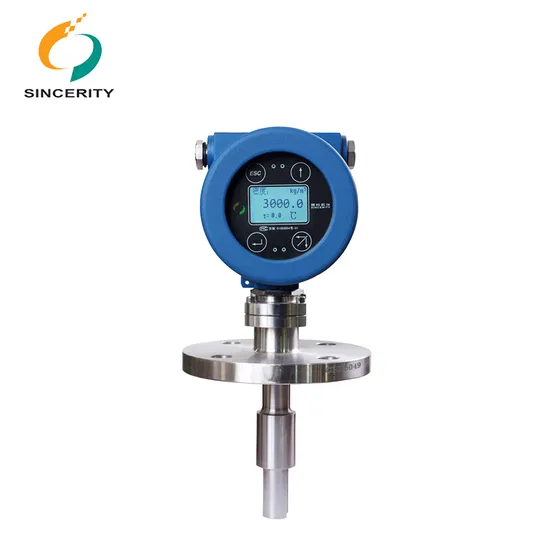

High Accuracy Explosion Proof Tuning Fork Fuel Density Meter

Product Description

Please attention:
BEIJING SINCERITY FACTORY OFFER YOU:
Certification:
Kindly reminder:
all our certifications is REAL ONE.
NOT FAKE ,NOT FAKE, NOT FAKE !!!
PLEASE CONTACT US TO SHOW YOU !!!
WE HAVE CERTIFICATIONS FOR:
1. Quality control certifications: ISO 9001/ ISO 4001/ OHSAS 18001
2. CE Certificate
3. Explosion Proof Certificate
4. Certificate of Origin
5. Production License, and Environmentally Friendly Certificate.
-------------------------------------------------------------------------------------------------------------------------
WORLD-WIDE CUSTOMERS COMMENTS & FEEDBACK
Here is some of the comments from our world-wide customers.
You can check all the comments at our company profile.
Please visit www. bjsincerity.en.made-in-china.com
click "Company profile, then choose "Rating & Reviews"
Then you can see all the comments from our clients.
{Please note: all our cusomter comments is real one, NOT FAKE. }
[TRUST YOU WILL LIKE OUR SERVICES, QUALITY AND PRICE]
Production Description:

Density Range		0.5 - 2.5 g /cc (500 - 2500 kg/m3), other density range can be special ordered
Measurement Accuracy		± 0.002 g /cc (± 2 kg/m3);± 0.001 g /cc (± 1 kg/m3)
Repeatability		`20 ~ +200 Degree Celsius (ºC), other temperature range can be special ordered
Pressure Rating		0~4 MPa, other pressure range can be special ordered
Viscosity Range		0 - 20000 cP
Temperature Effect		Less than 0.1 kg/m3/ºC (After Calibration)
Impact from Pressure		Negligible
Built-in Temperature Sensor		PT100
Wetted Parts		Stainless steel 316LHastelloy alloy
Tine Finish		Standard, PFA coated, or Electro-polished
Power supply		24VDC,≥500 mA/ 220VAC
Outputs		4 -20 mA,0-1000Hz,RS485 Modbus RTU
Density accuracy -process(20°C)		± 0.1% or ± 0.05% FS of indicated figures
Repeatability - process(-40 +85°C)		± 0.05% FS
Process connection		Flange, chuck connection, etc. Other connection can be special ordered
Defensibility		IP67
Explosion Proof		ExdIIBT5Gb
Outer Covering		Aluminum alloy

DMF-1-CR insertion density meter could apply the on-line density testing. It could be applied in the product process controlling based on the basic parameters of density, or the mass controlling system as the solid percentage or the concentration for references.
Typical Industries include petroleum chemical industry, wine industry, food industry, pharmaceutical industry and mineral processing, (for example clay, Carbonate Carbon, Silicate, etc.). The insertion density meters are applied in the pipeline detection of the multiple medium of the industries listed above, density testing of the stirred mixture, the reaction kettle end monitoring, and the separator interface detection.

Code

Product

CR

DMF-1-CR Insertion Density Meter

code

Fork Material

A

SS 316L

B

HC Hastelloy

C

SS316L with PTFE

D

HC Hastelloy with PTFE

code

Output

E

4-20mA 0-1000Hz RS485 Modbus RTU

code

Power Supply

A

24VDC

B

220VAC

code

Transmitter Casing Material

F

Aluminium Alloy

code

Pressure Class

16

1.6MPa

40

4MPa

XXX

Special pressure can be ordered

code

Process Connection

A

DN50 HG/T 20592-2009 RF

B

Chuck Connection

XXX

Special connection can be ordered

code

Length

128

Standard 128mm

XXX

Special length can be ordered

code

Extension Pipeline Material

A

Without extension pipeline

B

SS 316L

C

HC Hastelloy

D

SS 316L with PTFE

E

HC Hastelloy with PTFE

code

Flange Material

A

SS 316L

B

HC Hastelloy

C

SS 316L with PTFE

D

HC Hastelloy with PTFE

code

Installation Method

A(XX)

Horizontal Pipeline (XX:Pipeline Size)

B(XX)

Vertical Pipeline (XX:Pipeline Size)

C

Tank Installation

D

Other installation method can be special ordered

code

Factory Setting

G

Factory Setting Options

CR

A

E

A

F

40

A

128

A

A

A

G

Ordering Information

Detailed Images:
Our Factory:
(About BEIJING SINCERITY GROUP)
OUR GROUP MEMBER:
1. American first unit of coriolis mass flow meter entered China. Beijing Sincerity Group belong to the state-owned enterprise. Sinopec has invested large amount of money to ask the Beijing Sincerity to develop the VERY FIRST Chinese domestic unit of mass flow meter. - SINCE 1987
2. Beijing Sincerity Group was awarded for the National Price for progress in Science and Technology. - SINCE 1989
3. Beijing Sincerity Group has launched the very first unit of Chinese domestic Coriolis mass flow meter. - SINCE 1993
4. Beijing Sincerity Group has been swithced to the joint-stock company. Beijing Sincerity Automatic Equipment Co., Ltd was officially established.- SINCE 2006
(2 factories- +200 workers- +500 designs - +mall order- quick shipping).
90% of the core measuring components are imported from Japan and U.S. to offer our customers the best competitive advantage products.
OUR MANAGEMENT TEAM IS MULTINATIONAL NATIVE SPEAKERS MANAGEMENT TEAM.
Our BRAND: "BEIJING SINCERITY"
OUR MAIN PRODUCTS IS:
1. CORIOLIS MASS FLOW METER- SINCE 1993
2. TURNING FORK DENSITY METERS- SINCE 2000.
3. THERMAL GAS MASS FLOW METERS - SINCE 2010.
We had the honor to serve many petrol oil companies allover the world.
WELCOME TO BE ONE OF OUR TOP "VIP" CUSTOMERS.
WE BELIEVE THAT "THE QUALITY IS THE SOUL OF AN ENTERPRISE."
WELCOME TO CONTACT US.
"WITH US YOUR MONEY IN SAFE, YOUR BUSINESS IN SAFE."
WE PROVIDE 7-DAY QUICK SHIPPING!
PLEASE CONTACT US FOR THE WHOLE CATALOG .
MORE THAN 300 MODELS ARE WAITING FOR YOU!! ACTION NOW!!
