New Original Genuine Phoenix Power Supply Quint-PS/1AC/24DC/20 ID2866776

Product Description

Product Description
Uninterruptible power supplies
No problems during mains interruptions
Mains interruptions can have serious consequences. We provide the following solutions for high system availability, even in the event of a mains failure: • DC and AC UPS modules with communication interfaces • UPS modules with integrated power supply or integrated battery module • Comprehensive selection of battery modules.
Supplying AC loads without mains
For online and offline operation
Our uninterruptible power supplies for industrial AC applications ensure maximum failsafe performance and system availability in the event of voltage failures or fluctuations. The AC UPS delivers a pure sine curve at the output and supplies AC loads with alternating current of up to 2.5 kVA without interruption. Choose the ideal AC UPS with appropriate battery module for your application.
Detailed Photos
Product Parameters
QUINT AC UPS
The clever IQ Technology in the QUINT UPS for AC applications monitors and optimizes the operation of your battery module. To supply your processes and applications as long as possible, use the complete energy content.
You will be warned at an early stage of possible failures, because your UPS detects the remaining expected life of the battery module. At the same time, the UPS detects the current performance of the energy storage device. The different battery module types available allow the optimized operation of your system. The UPS can be integrated via the USB interface, which means it can be connected to higher-level controllers. The QUINT AC UPS delivers a pure sine curve at the output. The sine wave generated during battery operation is synchronized to the grid previously used for supply, allowing seamless transition.

Technical data
Input data
Nominal input voltage range	100 V AC ... 240 V AC
Input voltage range	100 V AC ... 240 V AC -15 % ... +10 %
Derating IStat. Boost	< 100 V AC (1 %/V)
Input voltage range DC	90 V DC ... 350 V DC
Input voltage range AC	85 V AC ... 264 V AC
Voltage type of supply voltage	AC
Electric strength, max.	300 V AC
Typical national grid voltage	120 V AC
	230 V AC
Inrush current	< 20 A
Inrush current integral (I2t)	< 3.2 A2s
Inrush current limitation	20 A
AC frequency range	45 Hz ... 65 Hz
Mains buffering time	> 32 ms (120 V AC)
	> 32 ms (230 V AC)
Current consumption	7 A (100 V AC)
	5.8 A (120 V AC)
	3 A (230 V AC)
	3.1 A (240 V AC)
Nominal power consumption	569 VA
Power factor (cos phi)	0.89
Typical response time	< 0.6 s
Input fuse	12 A (slow-blow, internal)
DC operation
Nominal input voltage range	110 V DC ... 250 V DC
Input voltage range	110 V DC ... 250 V DC -18 % ... +40 %
Derating IStat. Boost	< 110 V DC (1 %/V)
Current consumption	6.3 A (110 V DC)
	2.8 A (220 V DC)
Output data
Efficiency	typ. 92 % (120 V AC)
	typ. 92.7 % (230 V AC)
Output characteristic	U/I
Nominal output voltage	24 V DC ±1 %
Setting range of the output voltage (USet)	18 V DC ... 29.5 V DC (> 24 V DC, constant capacity restricted)
Nominal output current (IN)	20 A
POWER BOOST (IBoost)	26 A (-25 °C ... 40 °C permanent, UOUT = 24 V DC )
Static Boost (IStat.Boost)	26 A
Selective Fuse Breaking (ISFB)	120 A (12 ms)
Derating	60 °C ... 70 °C (2.5 %/K)
Feedback voltage resistance	≤ 35 V DC
Protection against overvoltage at the output (OVP)	≤ 35 V DC
Output power	480 W
	624 W
Maximum no-load power dissipation	8 W
Power loss nominal load max.	40 W
Dimensions
Item dimensions
Width	90 mm
Height	130 mm
Depth	125 mm
Weight per piece (including packing)	2190 g
Weight per piece (excluding packing)	1608 g

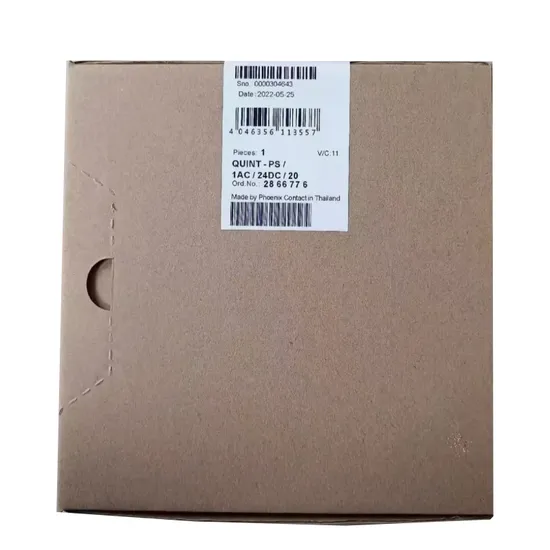

Packaging & Shipping
