Sell to Russia 28-128mm 1.1" 12Megapixel Motorized Zoom Lenses Security Surveillance CCTV Lens Camera Optics ITS LPR Liscence Plate Recognition Industrial IR DC /3 Motors / P-iris C Mount NIR China Lentz

Product Details

Product Description

Product Description

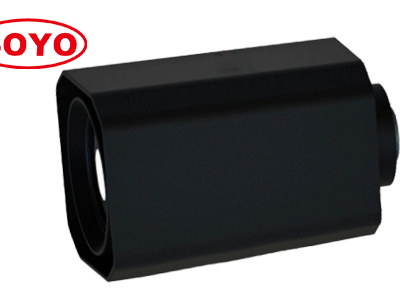

28-128mm 1.1" 12Megapixel Motorized Zoom Lenses Security Surveillance CCTV Lens Camera Optics ITS LPR Liscence Plate Recognition Industrial IR DC /3 Motors / P-iris C Mount NIR China Lentz
PDF Datasheet : S11MZ28128PIR-12M
High resolution: 12 megapixel covering 4K, 1080P
Suitable F. length: 28-128mm making up short distance surveillance.
Big aperture: F2.5 suitable for dark vision
Large format: 1.1" large format covering all 1",1/1.7",1/2"
Compact size : Compact small size lens for special application.
Optional Iris : P-iris & 3 motors, DC iris for option
Application: Highway,train, industry, power station, city surveillance

Model		S11MZ28128PIR-12M
Resolution		12 Megapixel
IR Corrected		IR
Format		1.1"
Focal Length		28-128mm
Aperture (Close/360)		F2.5 P-Iris
Angle of View (°)	1.1" IMX428	W: 32.3*26.5*18.1 T: 8.5*7.1*4.9
	1" IMX305	W: 29.5*25.9*13.6 T: 7.8*6.9*3,7
	1/1.2" IMX485	W: 23.5*20.4*11.4 T: 6.3*5.5*3.1
M.O.D		3m(W) ~ 5m (T)
Distortion		-4.3%-1.7%@1.1; 2.1%-0.9%@1/1.2”
Relative illumination		42%@Φ12.8mm (W);40% Φ12.8mm (T)
C.R.A		1.9° Tele;3.0° Wide
Dimension		Φ80*85*144.8mm
B.F.L		12.02mm
M.F.L		13.526mm
Mount		C
Weight		500g
Relative Illum		45% Wide Φ8.8;40% Tele Φ8.8
Character		Coating 400~900nm;-30°~+70°
