Woodworking CNC Router Atc CNC 1325 Atc Woodworking Machine for Furniture

Product Description

Product Description
ATC cnc router with circular auto tool changer 12 tools, can choose 10 tools, 8 tools, 6 tools etc.
Well-known 9.0KW ATC spindle, strong cutting ability, low noise, long working time. Other configuration including Taiwan LNC control system, Japan yaskawa servo motor, Taiwan Detal inverter, HIWIN guide rail, Helical rack etc.Ideal for panel furniture, solid wood furniture, office furniture, wooden door productions, as well as other non-metal and soft metal applications.Advantage:
#Every machine will be tested for 10hs before delivery,all of them are qualified absolutely.
#Every machine was inspected for about 10 steps before delivery ,which can keep machine high accuracy,strong capacity,longer lifttime and enough stability.

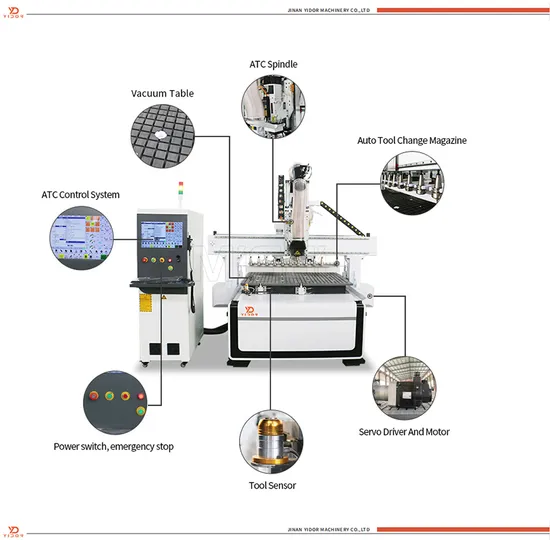

Detailed Photos
Product Parameters

Model	YD-1325T/YD-1530T/YD-2030TATC
X YZ route or distance of travel	1300*2500*200mm/1500*3000*200mm/2000*3000*200mm
Voltage	220V/380V,3PH
Max empty travel speed	XY.50000mm/min Z:20000mm/min
Working Speed	15000-30000mm/min
Countertop structure size	Vacuum Adsorption Countertop:1960*3980 24holes
Bed structure	Heavy Bed Structure
Transmission	Guide ;25 Square rail
	Rack: High precision 1.5M Helical gear
	Reducer: Japan Shinpo
	Screw: Taiwan TBI
Knife Library	Straight line 12 follow knife library
Inverter	Tetran 11KW
Spindle	JST 9KW Air cooling
Motor	Leadshine servo motor
Run command	G-code
Operating system	MW2500D
Total weight	2.5T
Plate fixing	7.5KW water pump
Dust collection	5.5KW
Delivery time	Within 15days after getting the payment

Packaging & Shipping

Company Profile

YIDOR Laser is one of the world's leading manufacturers of high-tech industrial laser solutions, dedicated to providing laser intelligent equipment solutions and enabling our customers in various branches around the world to become more efficient and competitive. is specialized In the R&D, production and marketing of Fiber&CO2 laser equipment, including Fiber laser cutting machine,laser marking machine, laser welding machine and cleaning machine, Co2 Laser Engraving and Cutting machines. We guarantee the stable and timely delivery, reliable quality, and timely on-site training and after-sales service. We offer products approved by SGS enterprise certification,FDA, CE Certifications, design patents.
YIDOR Laser owns over one thousand staff, including over 100 backbone researchers, over 30 QA inspectors. They have rich experience in laser industry. YIDOR Laser, gathering Global wisdom, sells to more than 150 countries and assists to promote the initiate of intelligently Made in China.
machine show

Certifications

After Sales Service

24 hour online service
* Inquiry and consulting support.
* Sample testing support.
*We offer free training in our factory, welcome to visit and learn more about our machines.
*Multi-language support

2 years Warranty
* We have the high quality machine
* We provide 2 years warranty, leading the whole industry
* Our agent help us to make a perfect after-sales service system

training and maintenance
Engineers available to service machinery overseas.
3 day lightning shipment
Localized service with new machine production for 10 days
