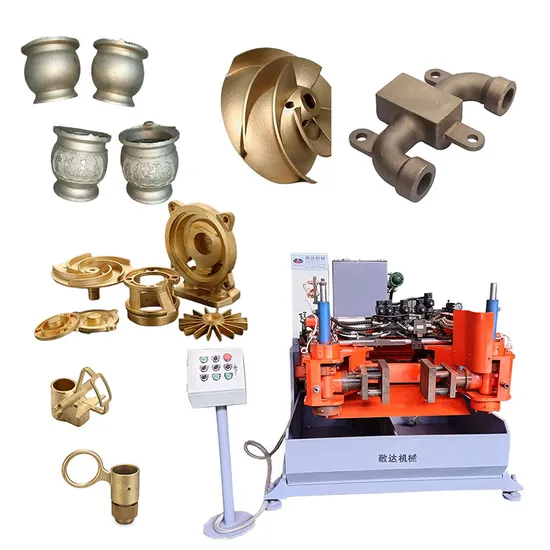

Jingda Multi Jet Dry Copper Water Meter Gravity Casting Machine Jd-Ab500
| US$23,000.00 | 1 set (MOQ) |
Basic Info.
Model NO.
JD-AB500
Install
Horizontal
Medium Temperature
Cold Water
Level Measurement
C
Counter Instructions
Digital and Analogue
Nominal Diameter
15-50mm
Application
Civil
Principle
Volumetric Meter
Medium Pressure
General Water Meter
Work Environment
Wet Water Meter
Stucture
Traditional
Material
Copper
Transport Package
Carton
Specification
ISO9001: 2000
Trademark
Jingda
Origin
Quanzhou City, Fujian Province, China
HS Code
8454309090
Production Capacity
40000 Sets/Month
Packaging & Delivery
Package Size
21.00cm * 17.00cm * 18.00cm
Package Gross Weight
2300.000kg
Product Description
I.Water Meter : it is durable and do not rust use long long ago for use copper material .
| Maximum outline diameter | Ф500 mm |
| Maximum mold weight | 150 kg |
| Maximum distance of mold base plate | 510mm |
| Maximum clamping stroke | 270mm |
| Angle range of measured-cast | 0°-90° |
| Angle range of pre-cast | 0°-110° |
| Angle range of mold immersion | 0°-90° |
| Hydraulic system pressure | 50-70bar |
| Motor power | 3.75+0.75+0.75kw |
| Power | three phase/380V/50Hz |
| Oil tank capacity | 220L |
| Volume of mold immersion tank | 375L+375L |
| Net Weight of Machine | 2000kgs |
| Size of Appearance of Machine(L*W*H): | 2.18mm*1.76mm*1.8mm |
In the meantime, we own strong administrant and technical teams to ensure that our innovation and improvement ability can keep up with changeable market requirements. In order to satisfy our customers better, we can also make machines according to our customers' specific needs.
Our after-sale service is prompt and patient. Once you place an order, we are willing to give you support in installment and labor training. During the production period, if you meet any problems that you are not able to deal with, you could contact us. We will try our best to help.
5. Working Process:
Mold preheating-next sand core---Matched Molds ---Casting ----Leans changes course the material ---Die sinking ----Goes against ----Components
6 .Certificate
7.Our customer
