Extruder Die Pellet Mill Die Feed Mill

Extruder Die Pellet Mill Die Feed Mill

Negotiable 1 Set (MOQ)

Basic Info.

Model NO.
Pellet Mill
Processing Technics
Crushing-before-Mixing
Screen Mesh
Without Screen Mesh
Grinding Equipment Type
Feed Hammer Mill
Pellet Mill Type
Ring Die Pelleter
Bulking Machine Type
Twin Screw Bulking Machine
Expanding Method
Dry Expansion
Condition
New
Applicable Materials Shape
Granular
Remark
Various Brands and Models Can Be Customized
Transport Package
Pallet
Specification
4Cr13, X46Cr13, & 60Si2Mn
Trademark
CPM
Origin
China
HS Code
8436990000
Production Capacity
50000 Set/Month

Product Description

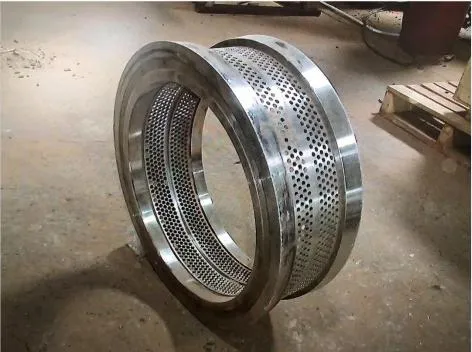

Pellet Mill Die
Our factory utilizes modern state-of-the-art equipment, including the latest automated gun and automatic drills. Precision manufacturing ensures that the ring dies we manufacture are of the highest quality.
Our ring dies are manufactured from the highest quality refined steel forgings. Normally in the following specifications: 4Cr13, X46Cr13, & 60Si2Mn (tempered to 53-55 HRC), we can also produce pellet dies to our customer's material specifications.
Using quality steel (with high carbon and chromium content) and high hardness after heat treatment, ensures our dies are durable and have a long working life.
Professional design and marketing experience to ensure the ring dies shape and the depth and number of mold holes can meet the different needs of various animal feed and pet food, thereby improving the production efficiency of the pellet.
Parameter Description
MODEL INSIDE DIAMETER OUTSIDE DIAMETER WIDTH WORKING BAND
DFGB 900 1030 296 226
DFPB 420 489 182 138
DMFC 303 381 95 62
DPAA 660 790 236 178
CPM3020 508 556 238 156
CPM6122 508 660 238 156
CPM7726 673 890 325 180
CPM7730 762 965 368 210
MUZL350 350 423 138 100
MUZL420 420 570 144 136
Remarks: Various brands and models can be customized
