Chinese Small Mini Excavator 1.2 Ton Euro V CE EPA Emission Standards

Product Description

Product Description
Wishope cheap mini excavators are multi-purpose, powerful, and long-lasting.
Strong China engine or Japan engine optional For personal use or leasing purpose Excavator safety features
The Compact Size for Tight Jobs Wishope 1 ton mini excavator is perfect, for digging trenches breaking holes removing waste, and excavating mines.
Wishope will provide you with a high-performing 1 ton mini digger with an attractive look and a wide range of applications at a low price.
The 1 ton mini hydraulic excavator of Wishope has a compact and slim design that allows it to access even the most confined area. It is quiet and comfortable and can be used securely even in highly urbanized areas.

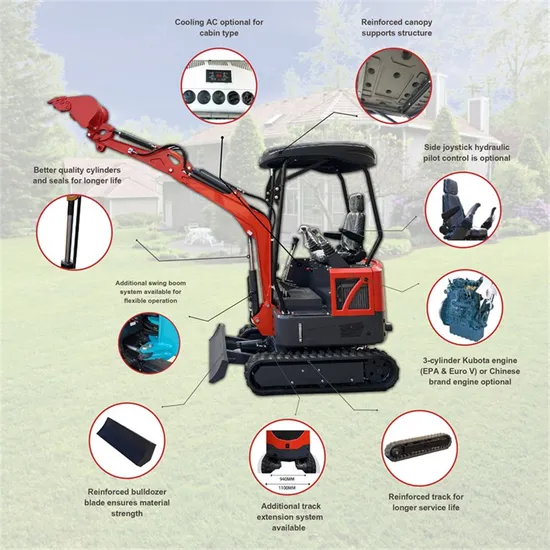

Wishope specializes in the R&D, production, and sales of small excavators Able to dig down to 2150mm - this means most trenches will be done with ease. Large deep grip tracks- this allows you to grip in the most sticky situations. Small Operating area - this allows you to access areas easily. Easy-to-use controls - this means it is simple to operate. 2400mm maximum height - means you can load trucks or pile things up higher and easier. Detailed Photos
Product Parameters

NO.	Specification	Unit	WS-17	WS-17PLUS
1	Operating Weight	kg	1200	1250
2	Bucket Capacity	m³	0.04	0.04
3	Bucket Width	mm	400	400
4	Travel Speed	Km/h	2---3	2---3
5	Grade Ability	%	35	35
6	Engine brand	/	LD 385	LD 385
7	Rated Power	kW	28.6	28.6
8	Cylinders Quantity	/	3	3
9	Cooling type	/	Water Cooling	Water Cooling
10	Fuel consumption	L/h	1.4	1.4
11	Travelling Control	/	Mechanic	Hydraulic Pilot
12	Overall Length	mm	2550	2550
13	Overall Width	mm	940	940
14	Overall Height	mm	2150	2150
15	Counterweight ground clerance	mm	380	380
16	Track length on Ground	mm	1370	1370
17	Track shoe width	mm	180	180
18	wheel Gauge	mm	740	740
19	Track Extension Range (additional function)	mm	940-1100	940-1100
20	Swing Angle(L&R)	°	60	60
21	Min.Front Swing radius	mm	1570	1570
22	Max.Diiging radius	mm	2500	2500
23	Max.Digging Depth	mm	1900	1900
24	Max.Digging Height	mm	2900	2900
25	Max.Dumping Height	mm	2000	2900

Various models of mini excavators:
WS-17 WS-18 WS-15
WS-13 WS-12 WS-08
Hot Product
DT350 DT260 DT230

DT65 DT160 DT180
DW80 DW88 DW150
Company Profile
Established in 2014, Wishope Machinery focus on construction & agricultural machinery products manufacturing and export for around 10 years. The R&D team has fully learned the design concepts of Japanese and Korean hydraulic excavators, with years of sales and modification, all the product design is very mature and stable. Over 250 employees and 22 senior engineers. We export small to big excavators to over 20 countries such as Indonesia, Malaysia, Colombia, and mini excavators exported to the USA and to European countries.Wishope Hydraulic Excavators - innovative construction machinery: Digging, excavating and shoveling are the main tasks of the excavator. Whether in civil engineering digging a pit or dredging in a body of water: Our hydraulic excavator offers the optimum machine for every task.Get an overview of all micro excavators and find the right construction machine for your application. A wide range of attachments are available for our machines. Excavator buckets and shovels, vibrators and hammers, and grabs make your excavator a real working machine.China's excavators are growing at a high annual export sales rate of about 15% in the past 3 years. There are big Chinese excavator like our Dootech. After decades of technological precipitation, Chinese excavators have been able to find a balance between price and quality in a very balanced manner, so as to achieve high export sales. Packaging & Shipping
Our Advantages
What Kinds of Excavators We Can Provide?Hydraulic excavators are divided into many types according to the tonnage of the model. 1-3 tons are called micro excavators, 6-13 tons are called small excavators, 15-39 tons are called MIDI excavators, and more than 40 tons are called large-scale excavators.We can provide all kinds of crawler excavators, including Dootech brand with Korean technology, mini long-reach excavators with Japanese technology, etc.At the same time, we also customized accessories, such as the modification of long arms, OEM amphibious excavators, and the modification of excavator attachments, the spare parts of various brands of excavators.
