Dsh Double Screw Cone Shape Mixer Machine Equipment

Product Description

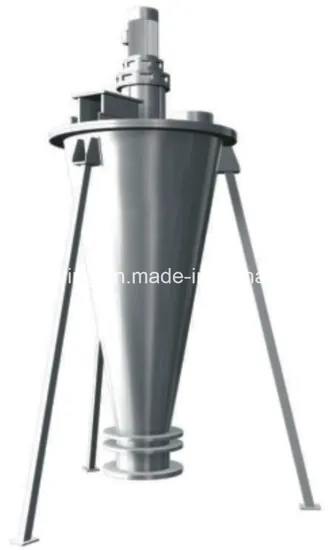

Product Description DSH Double screw cone shape mixer machine equipment
Description
DSH double screw mixer integrates powder, granule and liquid mixing. The rotation of twin screw mixer is completed by a set of motors and cycloid reducers. With asymmetric mixing by two screws, the stirring range will be expanded and stirring speed will accelerate.

Application
DSH double screw mixer is suitable for powder and powder, powder and liquid as well as liquid and liquid mixing. It is widely used in chemical, fertilizer, pesticides, dyes, breeding, food, pharmaceutical, health food, bioengineering and nuclear materials industries. This twin screw mixer has a good adaptability to coarse, fine and ultrafine powder, fibers or flakes mixing.

Features
1. Twin screw blender is greatly adapted to mixed materials.
2. This machine has no over-hearting phenomenon to sensitive materials.
3. Double screw mixer will not grind particulate materials.
4. This twin screw mixer will not produce segregation phenomenon when it comes to poor proportion materials.

Parameters of Double Screw Mixer

Model	DSH0.3	DSH0.5	DSH1	DSH2	DSH4	DSH6	DSH10
Overall Volume (m3)	0.3	0.5	1	2	4	6	10
Loading Factor	0.4 to 0.6
Particle Size of Mixing Machine (μm)	40 to 3000
Working Conditions	Under normal temperature and normal pressure, dust seal
Production Capacity of Each Time	180	300	600	1200	2400	3600	6000
Power of Mixing Machine (KW)	2.2	2.2	5.5	5.5	11	20.7	30.7
Mixing Time (min)	4 to 10 (Special materials determined by experiment.)
Total Weight (kg)	500	1000	1200	1500	2800	3500	4500

Jiangsu Yutong Drying Engineering Company is a High-New Technology Enterprise in China. With over 16 years of experience, we are able to provide a wide variety of products, including drying machine, grinding machine, granulator, mixing machine, and more. Features like compact structure, high efficiency, and low energy consumption have resulted in our products being increasingly used in the pharmaceutical, chemical, food, light industry, dyes, mineral products, electronics, ceramics, plastics, agricultural products, pesticides, feed, fertilizers, and other industries.
At Yutong, our cooperative relationships with many research institutes and universities enable us to constantly improve product performance and develop new drying machines, mixers and feed machines. As a result of our focus on innovation, we have received many national patents.
Since our foundation, we at Yutong have been committed to providing high quality products to our customers. In order to ensure our quality requirements are maintained, we implement the ISO9001:2008 quality management system, purchase our raw materials from reliable suppliers, continue to introduce advanced equipment, and employ highly skilled staff. The quality of our equipment is repeatedly checked during each stage of production. In addition, all machines must undergo a trial run in the workshop, and only those qualified products are allowed to leave our factory. Due to their consistent quality, Yutong drying machines, mixing machines and grinding machines have been awarded many honors, including Recommendation for High-quality Products by IQAC and Recommended Products for International Trade by the U.S. Asia Economic Trade Cooperation Committee.
At Yutong, many cost saving measures are also implemented to reduce our production costs. For example, we have established a local information network and carried out an efficient information management system (in terms of warehousing, production planning, and order tracking), thus reducing our operating costs. Additionally, we have long-standing relationships with local raw material suppliers, so we are able to acquire our high quality raw materials at reduced cost. Furthermore, our location in Changzhou City, Jiangsu Province provides us with easy access to convenient transportation, enabling us to transport our products economically. As a result, we can provide our quality spray dryer, double cone blender and rough grinding machine at affordable prices.
In addition to high quality and reasonably priced products, we at Yutong provide customers with considerate service. Our products come with a one-year warranty, during which we can provide staff training, on-site installation, and debugging services upon request. We also provide wearing parts at our cost prices. Hence, our drying machine, mixing machine, and sifting machine are very popular in USA, Canada, Italy,United Kingdom, German, Cyprus, Turkey, Korea, Japan, Vietnam, Thailand, Argentina, Chile, Brazil and so on.
We look forward to cooperating with partners from all the world to build win-win cooperation relationship in long term. Welcome for your visit and instigation!
