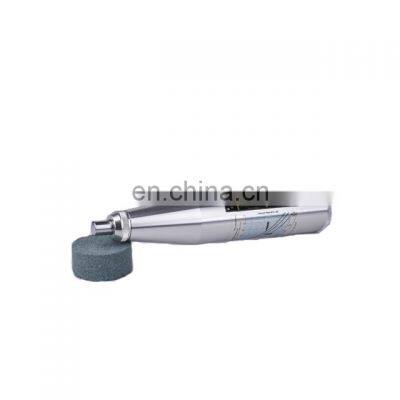

HT-225 Rebound Schimidt Hammer Schmidt Hardness Tester Rebound Test Hammer Compressive Strength Test

Product Description

Product Description
Product DescriptionNon destructive testing concrete is applied to test the compressive strength of building concrete components,bridge and so on.Technical parametersStandard impact energy2.207±0.1J (0.225Kgf.m)The static friction of pointer slider0.65N±0.15NLength of spring stretch75±0.3mmAverage rebound hammer on steel anvil Rm80±2Measuring Range10~60MpaRadius of spherical tip25mm±1mmWorking Temperature-10℃~+50℃Working Humidity≤90%RHDimensionsΦ54x280mmNet weightAbout 1.0KgDetailed Images1) Center rod is made from imported material, high accuracy and durable resistance.2) The shell is made form high Aluminum or high polymer material in order to perfect protect instrument from damage and extend use life.3) Pointer slider is outside structure, its friction can be balance well and easy to be adjusted so that we can make sure that the instrument is accurate. Compared with other suppliers in the line of business, the product is more accuracy, good quality, and best price and longer use life.How to workHT-225 Concrete Test Hammer1. Hardness testing of materials schmidt hammerUse a grinding stone to smoothen the test surfaceproducing PET plastic containers and bottles in all shapes.2. Perform a few test impacts with the rebound hammer on this smooth, hard surface before taking any measurements which you are going to evaluate. Perform a consistency check on the test anvil3.Position the hammer perpendicular to and against the test surface. Push the concrete test hammer adainst the surface at a moderate spped until the impact is triggered. Bes aware that the plunger generates a recoil when it deploys.CalibrationRelated ProductsContact UsTrade terms1. 18 Month's Warranty.2. Delivery time:3-7 working days after payments received3. MOQ:1 set.4. Service express company:TNT/DHL/FedEX.5. We accept T/T, Western Union, PayPal & Secure Payment.Contact UsNO.5 Shanshui Yuan, High-tech Industrial Zone Dalian, China 116033E-mail:commercial at Whatsapp:+8618842866177TEL:86-411-39685079web:/non destructive testing concrete
