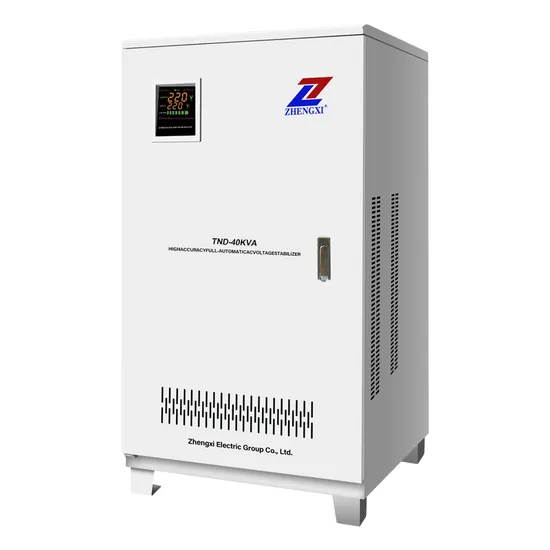

Tnd Series 10~60 kVA AC Single Phase Voltage Stabilizer Regulator SVC AVR

Product Description

Technical Parameters --

Specification	TND-10KVA up to 60KVA
Input Voltage	90V-260V AC or customized
Output Voltage	220V AC or customized
Output Precision	±3%(Adjustable)
Frequency	50/60Hz
Power Factor	80%
Efficiency	≥95%
Control Type	Servo Type
Operating Temperature	-10~+40ºC
Over/Low Volt Protection	YES
Circuit Protection	YES
Digital Display	Show input and output voltage

Product Parameters TND series fully automatically voltage regulator consist of contact autotransforme r, servo motor, automatic control circuit etc.When grid voltage instability or load change,automatically sampling control circuit sends a signal to drive servo motor,adjust the position of the self coupling voltage regulator for carbon brush,make the output voltage rating reach the stable state. Product Description 1.This product has the waveform distortionless,reliable performance,long-term operation and other characteristics 2.With time delay, over-voltage, under-voltage protection and other functions 3.Widely used in the field of electric power which needs to stabilise voltage, it is an ideal voltage stabilisation power supply to ensure the normal operation of your electrical equipment. Company Profile FAQ Q1: What is the Guarantee? A1: Within One Year From The Sale Date, If There Are Any Accessory Problems,You Just Provide The Photos Of Damaged Accessory, Then We Will Provide Free Accessory.According To The Number Of Products, We Will Provide Easily Damaged Accessories For Free.We Also Can Provide Technical Support If You Need. Q2: Can we put/show our own Logo on your products? A2: Yes, no problem, however, the quantity should be a bit big. Q3: Is OEM/ODM available? A3: Yes, It Is! Our Products Can Be Customized.We Design And Produce All Kinds Of Automatic Voltage Regulators/Stabilizers According To Our Customers' Specific Requirements. Q4: What is the MOQ? A4: For the small capacity products (Automatic Voltage Regulators/Stabilizers) of the default configuration, it is 10 sets. For the big capacity products, it is 1 set. Q5: Can you offer Form A or Form E or C/O ? A5: Yes, no problem, we can apply for it from our local government. Q6: What kind of Certificates do you have? A6: CE, ISO9001 and SGS. Q7: What is the Terms of Payment? A7: L/C, T/T, D/P, D/A, Western Union and MoneyGram (for Small-amount payment).
