Basic Info.
Transmission
Hydraulic Transmission
Drive Type
Internal Combustion Drive
Certification
CE, ISO9001: 2000
Max. Digging Radius on Ground
3470 mm
Max. Digging Radius
3560 mm
Max. Digging Depth
2150 mm
Max. Digging Height
3275 mm
Max. Dumping Height
2310 mm
Transport Package
Wooden Box
Specification
3160x1040x2377mm
Product Description

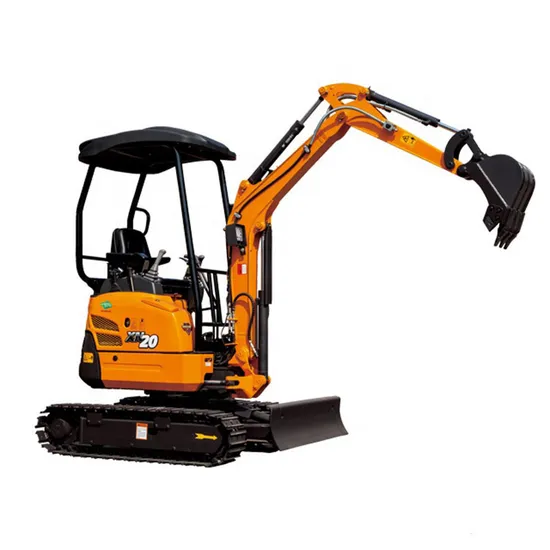

XN20 Mini Crawler Excavator
Advantage Points:
1, Use Yanmar engine, imported from Japan, more power, low fuel consumption;
2, Fully imported hydraulic system,
3, Telescopic lower frame, easy to in and out working side, track can back to 990mm when transportation, when working, can reach to 1240mm.
4, Swing boom, can be used in narrow area and working along the wall.
5, Variable dozer
