Automobile Sealing Strip Connection Machine Rubber Injection Molding Machine Atuomative Supplies Machine
| US$25,000.00 | 1 pieces (MOQ) |
Basic Info.
Certification
CE
Condition
New
Customized
Customized
Automatic Grade
Automatic
Structure
Vertical
Machine Type
Rubber Injection Machine
After-Sales Service Provided3
Video Technical Support
After-Sales Service Provided4
Engineers Available to Service Machinery Overseas
Dimension(L*W*H)
1.8*2.0*1.7m
Showroom Location
None
Weight
2
Warranty of Core Components
1 Year
Control
PLC Control
Key Selling Points
Easy to Operate
Applicable Industries
Machinery Repair Shops, Manufacturing Plant
Voltage
220V/380V/415V
After-Sales Service Provided1
Free Spare Parts
After-Sales Service Provided2
Online Support
Type
Auto Injection
Power
20kw
Transport Package
Wooden Case
Specification
2t
Trademark
MOMU
Origin
Zhejiang, China
HS Code
8477409000
Production Capacity
2000 Set/Sets Per Year
Product Description
Rubber Sealing strip connection machine ,rubber pipes join machine 30T
1. Machine Features :
1.Using the C-shaped frame with a fully open clamping structure on both side;
2.Using the all-in/all-out injection device without a runner,no check valve,and more accurate in measurement;
3.No aging rubber generated in the production process,nostub bars,more material saving and more efficient;
4.Being the best production equipment for connection of various types of sealing strips
5.The range of the material PA,PE,PP,PS,PC
2. Main Paremeters :
| Item | Unit | Model Item Parameters | |||
| TCI-10 | TCI-30 | TCI-50 | |||
| Ejection System | Screw Diameter | mm | | φ25 | φ30 |
| Screw Speed | r/min | | 0~120 | 0~120 | |
| Injection Pressure | | | 171 | 155 | |
| Piston Diameter | mm | | φ30 | φ40 | |
| Injection Capacity | cm3 | | 160 | 300 | |
| Maximum Ejection Rate | cc/s | | 20 | 30 | |
| Clamping System | Clamping Force | Ton) | 3×2 | 30 | 47 |
| Opening Stroke | mm | 120 | 300 | 350 | |
| Maximum Distance between Hot Plates | mm | 150 | 350 | 450 | |
| Minimum Mold Thickness | mm | 40 | 60 | 100 | |
| Hot Plate Dimensions | mm | 200×150 | 300×300 | 450×400 | |
| Electric Heating Power | kW | 7.5 | 8 | 9.6 | |
| Power System | Working Pressure (MPa) | | 14 | 20 | 21 |
| Motor Power (kW) | kW | 4 | 7.5 | 7.5 | |
| Installed Power (kW) | kW | 12 | 20 | 21 | |
| Others | Length × Width × Height (m) | | 1.3×1.0×1.6 | 1.8×1.0×2.7 | 2.0×1.0×3.0 |
| Total Weight (T) | T | 1 | 2 | 3 | |
| Cooling Water Flow (L/min) | L/min | 30 | 30 | 30 | |

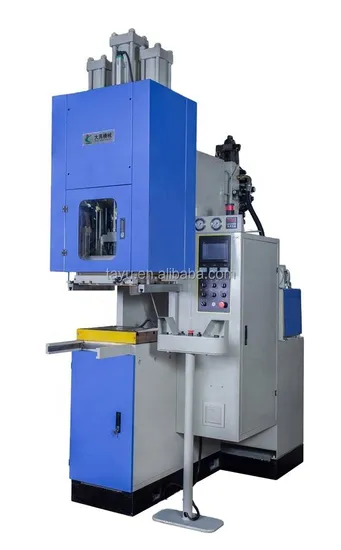

3. Machine and Products pictures :
4. Package :
5. Our Exhibition :
6.Our factory:
7. The main service item on our machine
1. installation and debugging: Our engineers will teach you about the installation and debugging for free.
2. Technology training : Our company will offer technology training for your operation.
3. After-sales service: We will supply the free repairment on this machine for one year,
but will supply the maintenance lifetime. ( the service is only for natural damage)
