Dry Food Powder Spiral Mixing Icing Sugar Ribbon Mixer Machine

Product Description

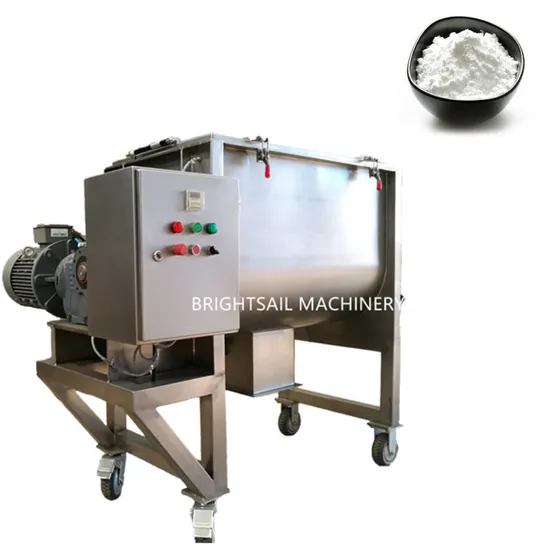

Product Description The BSR ribbon mixer machine comprises of U-shape barrel, transmisstion parts and ribbon agitating blades which usually have doubleor triple layers with outside screw gathering material from side to center and inside screw transmitting the material from center to sides to form convection mix.
It is widely used in solid-solid (powder material) and solid-liquid(powder material-fluidity material) mixing in the fields of chemical industry, pharmacy, foodstuff industries.
Main features 1) Simple structure in horizontal U shape, easy in installation and maintenance.
2) Adopting advanced world famous brand components in pneumatic parts ,motor,electric parts ,bearings and operation parts.
3) hermetic seals are adopted on both sides of our ribbon mixer,
4) There is safeyty net on the cover, so that operator cannot reach out arms into the mixer, danger can be prevented.
5) Pneumatic valve is adopted to discharge material
Product Parameters

Model	Max work volume (L)	Rotate speed (rpm)	Overall size (L*W*H) (mm)	Weight (kg)
BSR-300	180	66	1550(L)*812(W)*1015(H)	780
BSR -500	300	66	1975(L)*1059(W)*1120(H)	955
BSR-1000	600	41	2340(L)*1380(W)*1455(H)	1400
BSR-2000	1200	33	2480(L)*1651(W)*1805(H)	2500
BSR-3000	1800	33	2945(L)*1896(W)*1980(H)	3300
BSR-4000	2400	29	3038(L)*1946(W)*2205(H)	3600
BSR-5000	3000	29	3932(L)*2010(W)*2035(H)	4620
BSR-6000	3600	26	3938(L)*1882(W)*2246(H)	5300
BSR-8000	4800	26	3986(L)*2160(W)*2516(H)	6800
BSR-10000	6000	19	4500(L)*2270(W)*2667(H)	8900

Detailed Photos Safety net: help to prevent accidents Spiral Ribbons: drive material to move to get mixed Discharge valve: pneumatic valve Platfrom (Optional): for easy feeding and cleaning Applications
