HV Test Termination for Switchgear, Transformer and Other Equipment TB30 TB35

Product Description

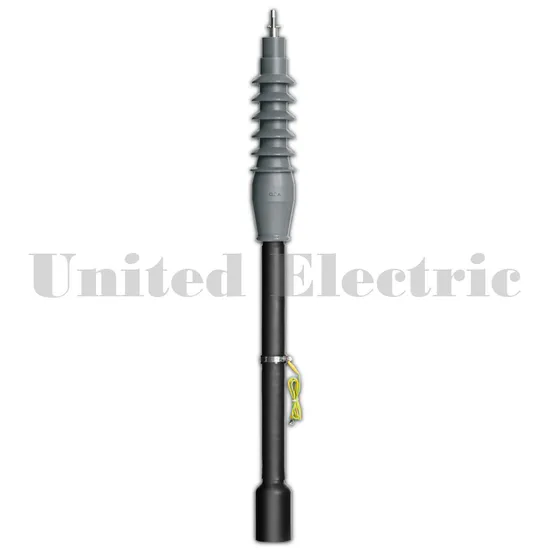

TB30-C, TB35-C, TS35-800-C Outside cone test termination (Interface C)
Application for electrical voltage test of switchgear, transformer and other electrical equipment equipped with interface type C bushing according to CENELEC EN 50180, EN 50181, DIN 47636.
TSL 630-C- -Test Stick (Interface C)TSL 630-C test stick is designed to apply electrical test of switchgear, transformer and other electrical equipment equipped with interface type C bushing according to CENELEC EN 50180, EN50181, DIN 47636. Easy and convenient for assembling.
TS35-400B-Outside cone test termination (Interface B)Application for electrical voltage test of switchgear, transformer and other electrical equipment equipped with interface type B bushing according to CENELEC EN 50180, EN 50181, DIN 47636.
Safety instruction
• The test termination shall be used only as a test device for testing electric equipment. The electrical equipment must be deenergize before installing the test termination and during testing.
• The user should incorporate complete provisions and safety precautions before using to avoid any accident.
• The provisions and safety precautions shall be proposed by the user and established by professional technicians on the basis of real site situation, and shall be guaranteed.
• Since applications for testing is completely out of manufacturer's control, the service life or application range of test termination can never be guaranteed. The user shall make their own decision whether or how often it can be used.
Technical data

Test Item	Test value (According to IEC 60502-4)
	TB30-C	TB35-C
AC voltage withstand	81kV, 5min	95kV, 1min
