Hot Sale Strong Compressive High Density Outdoor Fibre Optic Cable for Various Communication Applications

Product Description

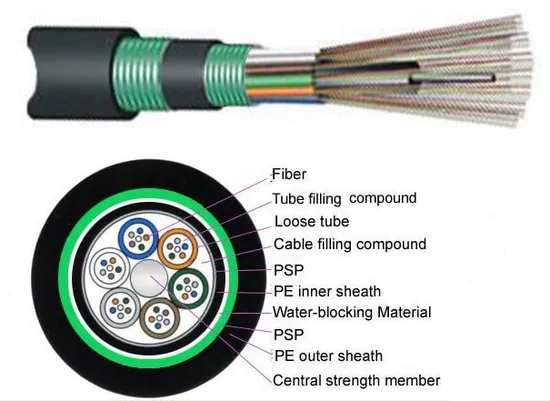

Cable Parameters

			Items		Specifications
	Fiber Type				G652D
	Fiber Count				4-36 core
				Dimension	250µm±15µm
	Colored Coating Fiber
				Color	Blue,Orange,Green, Brown,Etc
				Fiber No./Tube	4or12fiber/tube
				Dimension	2.0mm±0.2mm
	Loose Tube			Material	PBT
				Color	Blue, Orange, Green, Brown, etc.,
				Dimension	1.8±0.1mm
	Filler			Material	PVC
				Color	Natural
				Diameter	1.5±0.05mm
	Central Strength Member
				Material	steel
				Color	Black
				Material	PE
	Outer Sheath
				Inner sheatht Dimension	9mm±0.01mm
					13mm±0.01mm
				Oute sheatht Dimension
				Weight	180±5kg/km

Mechanical and Environmental Characteristics

Item	Unit	Specification
Tension(Long Term)	N	1000
Crush(Long Term)	N	3000
Crush(Long Term)	N/10cm	1000
Crush(Short Term)	N/10cm	3000
Min. Bend Radius(Dynamic)	mm	25D
Min. Bend Radius(Static)	mm	12.5D
Installation Temperature	ºC	-20~+60
Operating Temperature	ºC	-40~+70
Storage Temperature	ºC	-40~+70
